Chevy LS Engine Mount Adapter Kit, Adjustable

Chevy LS Engine Mount Adapter Kit, Adjustable

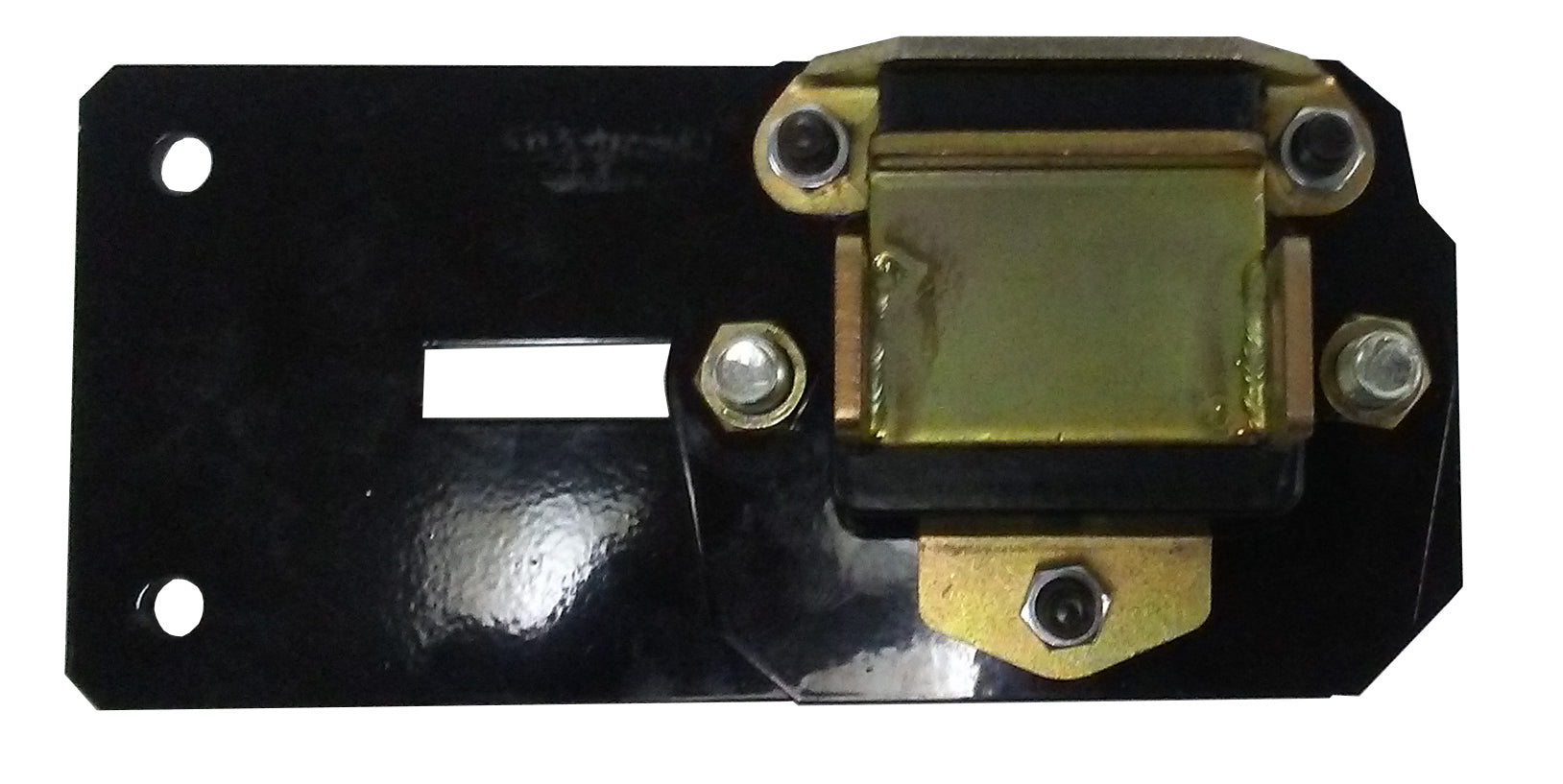

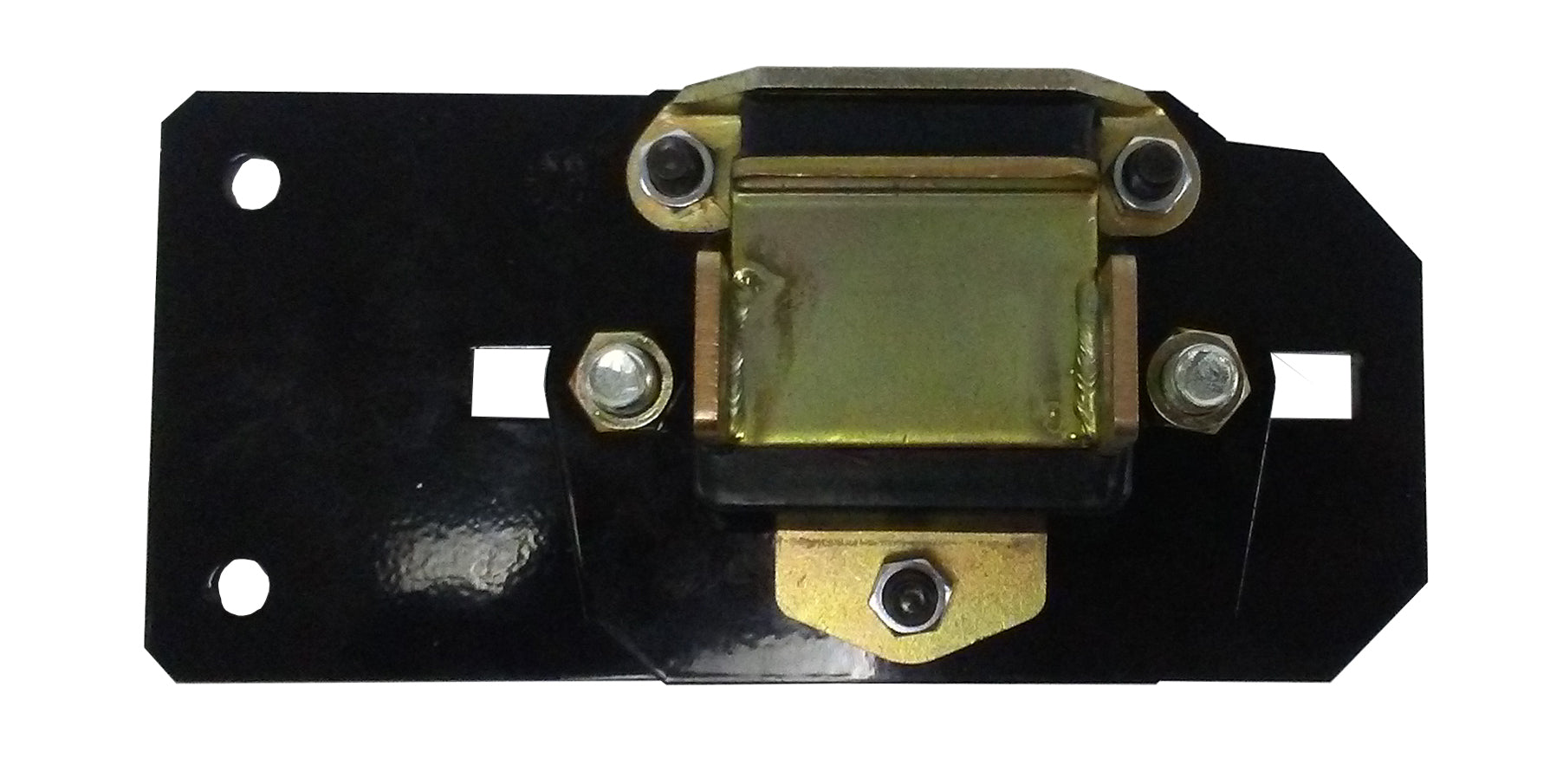

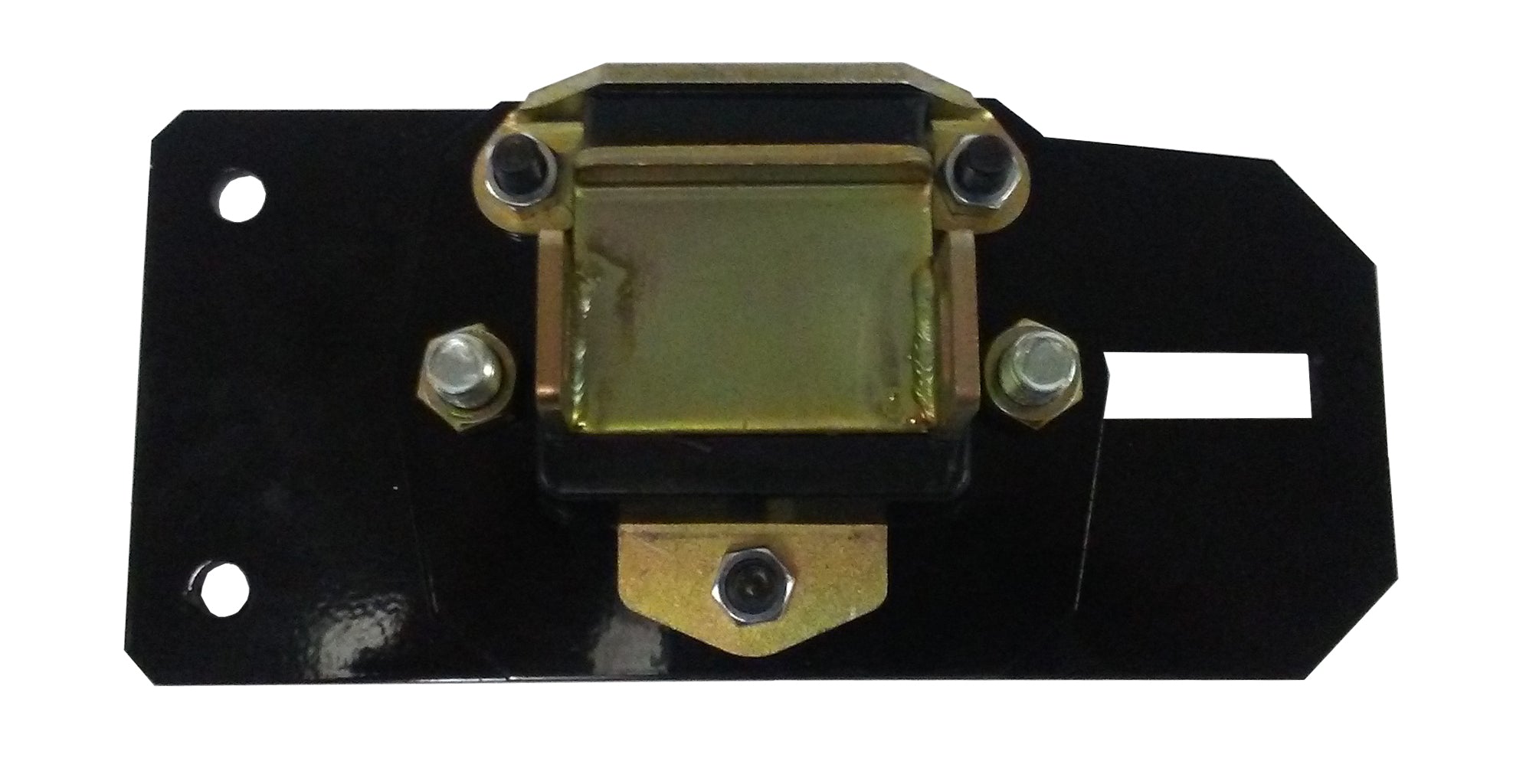

LS Conversion mounts "Ajust2Fit" LS Engine bracket in the forward position "Ajust2Fit" LS Engine bracket in the center position "Ajust2Fit" LS Engine bracket in the far rear position
Weight 5.00 lbs
Our price: $99.99
Year of Vehicle/Model

Performance Online's Chevrolet LS engine mount adapter kit is the answer to those LS engine swaps where the mounts don't line up with the proper frame location. Our kit allows almost 3" of adjustment of the engine. These adapter plates fit most applications and make installing your LS engine much less of a hassle. Many adapter plates do not allow the transmission to line up with the transmission cross member. POL’s improved design no-weld brackets are CNC laser cut 1018 steel and features a durable black powder coat finish.

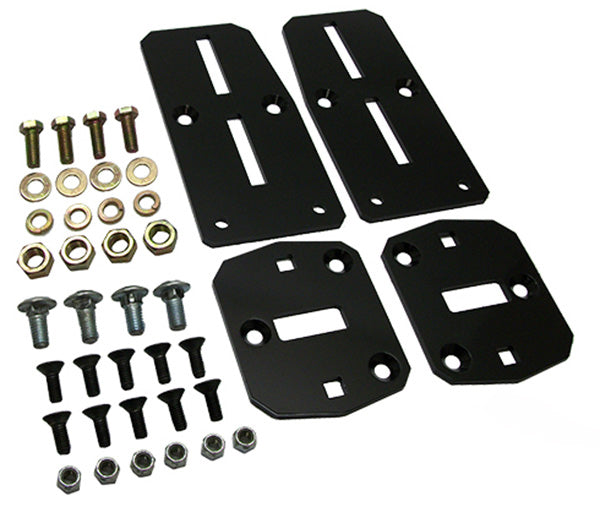

Adapter plates are made of 1018 steel and include the correct hardware to complete the installation.
Allows the engine to move from 1/2” rearward (great for oil pan to crossmember clearance) up to 2-1/2” forward allowing for a completely custom range of positions.

Allows our early three bolt type rubber or polyurethane motor mounts to fit LS engines.
Early type small block short and wide mount

Note: Urethane mounts shown in pictures for reference only.

Note: Rubber mounts are not recommended for this application

Note: Will not work if running factory LS a/c mount in the lower position

(May require moving transmission mount on some vehicles.)
