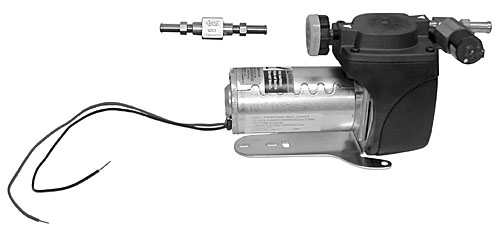

Vacuum Pump Detail

April 24th, 2009

vp-0117

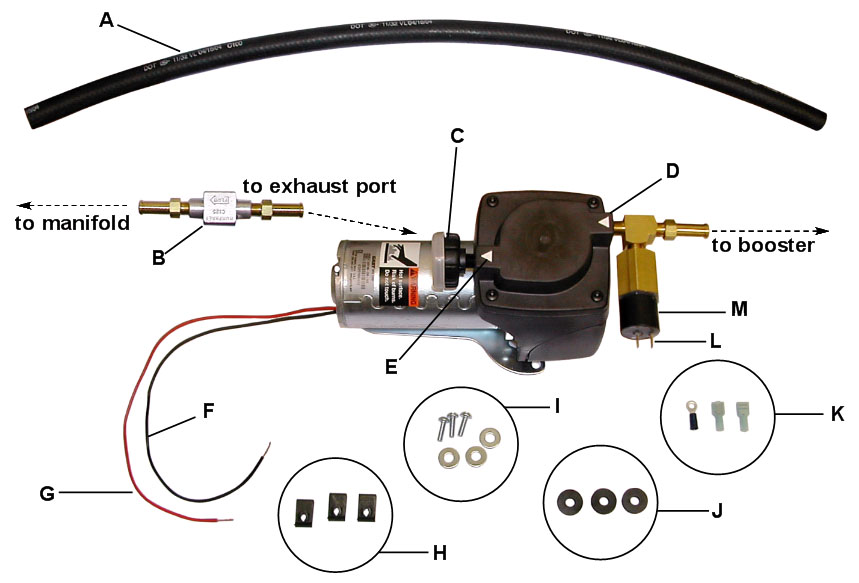

A – Vacuum hose
B – *Check valve connects manifold to port on vacuum pump
C – Optional Muffler
D – Intake port
E – Exhaust port
F – Ground wire
G – Positive wire (connect to vacuum switch)
H – Optional mounting hardware
I – Bolts and washers
J – Insulation washers
K – Electrical fittings
L – Connects to vehicle power source
M – Vacuum switch
