1959-64 Chevy Impala, Belair, Biscayne Ford 9" Rear End Housing and Axles

1959-64 Chevy Impala, Belair, Biscayne Ford 9" Rear End Housing and Axles
1959-64 Chevy Impala, Belair, Biscayne Rear End Housing and Axles
Part #: GMB5964
Weight: 150.00 lbs
Ships From Mfg: Built to order, allow 7-10 days to ship
Manufacturer: Currie
Our price: $1491.00
Upper Mount
Rear End Finish
Qty
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

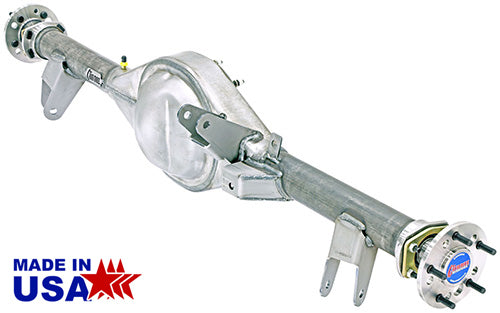

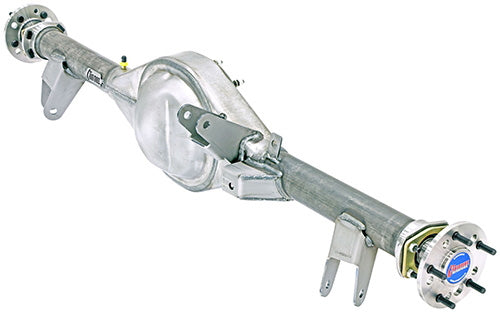

Features the 9-Plus heavy duty housing and 31 spline performance axle package built to the stock overall width and pinion offset specs. of the vehicle. All new laser cut and formed 3-link suspension and trac bar brackets are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them, wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.

This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes. Unit is 60" wide.

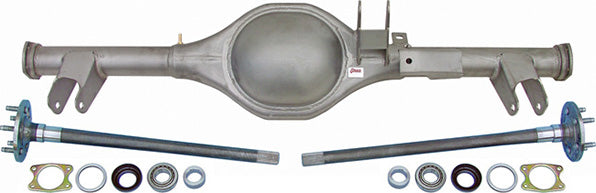

Kit includes:

  • Currie 9-Plus Heavy Duty Housing
  • 31 Spline Axles
  • Wheel Studs
  • Bearings

Notes:

Available for single and dual upper control arms

Application:

1959 1960 19612 1962 1963 1964 Chevy Impala, Biscayne, Belair, El Camino
