1965-70 Chevy Impala, Belair, Biscayne Ford 9" Rear End Housing and Axles

1965-70 Chevy Impala, Belair, Biscayne Ford 9" Rear End Housing and Axles
1965-70 Chevy Impala, Belair, Biscayne Ford 9" Rear End Housing
Part #:CE-GMB6570
$1950.00

Details

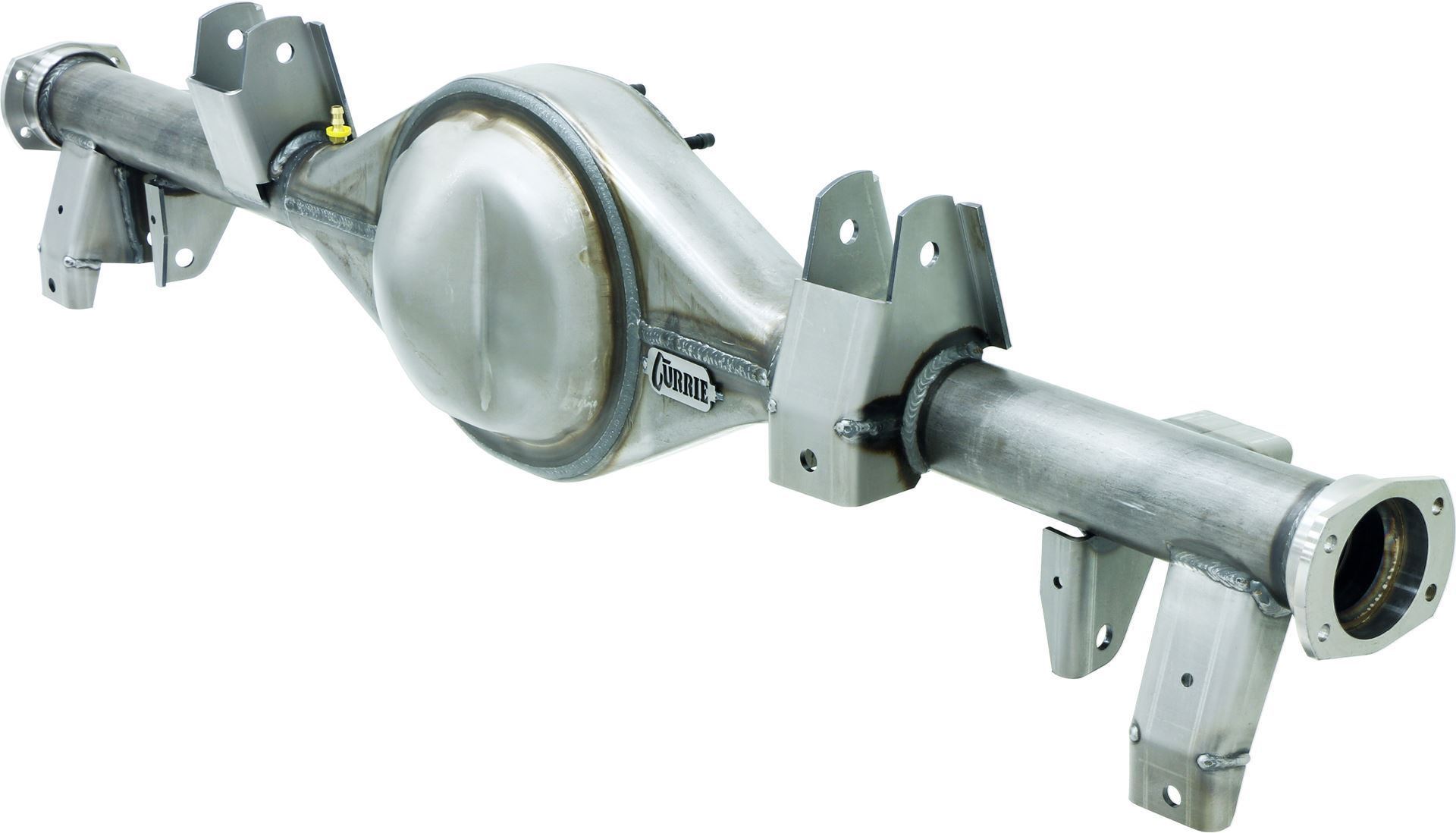

Features the 9-Plus heavy duty housing and 31 spline performance axle package built to the stock overall width and pinion offset specs. of the vehicle. All new laser cut and formed 3-link suspension and trac bar brackets are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them, wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.

This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes. Unit is 60" wide.

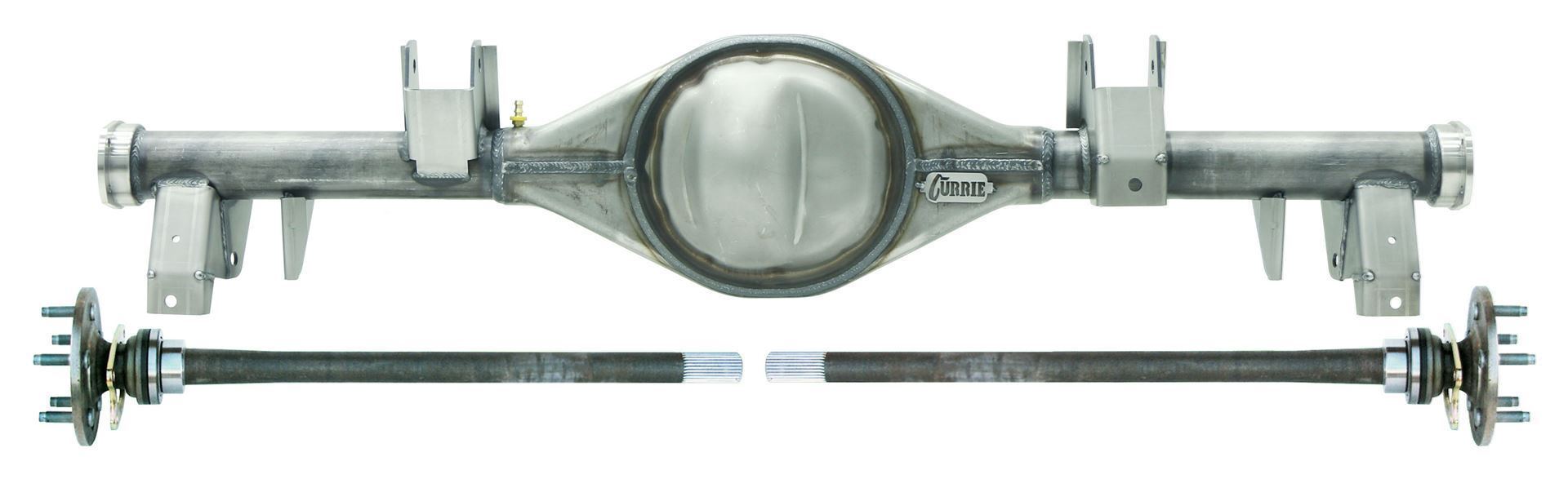

Kit includes:

  • Currie Centurion High-Strength 9-Inch Notchback Housing with Flush Drain Plug
  • Currie Performance 31-Spline Axles with Wheel Studs Installed
  • Tapered Axle Bearings and Heavy-Duty Retainers(shipped loose)
  • Suspension Brackets Installed in OEM Locations

Notes:

Factory Width
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

What does this fit?

1965, 1966, 1967, 1968, 1969, 1970 Impala, Bel Air, Biscayne, and Station Wagon, B-body vehicles
