1970-81 Chevy Camaro and Pontiac Firebird Hydro-Boost Power Brake Booster Kit

1970-81 Chevy Camaro and Pontiac Firebird Hydro-Boost Power Brake Booster Kit
Part #: HB2-C7081
Weight: 35.00 lbs
Our price: $549.99
Brakes Type
Qty
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

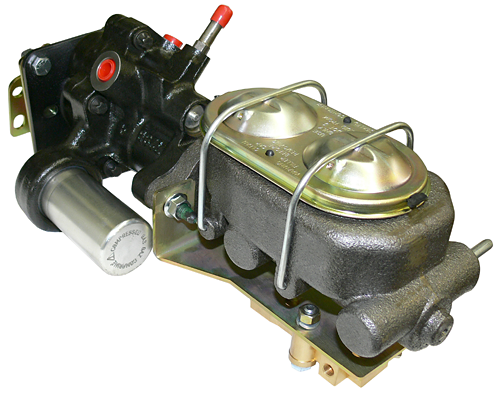

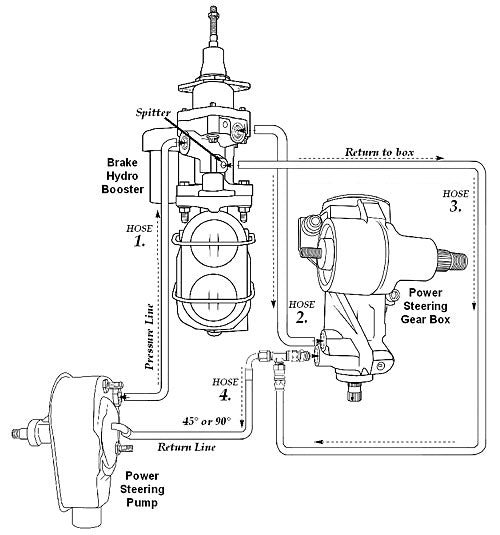

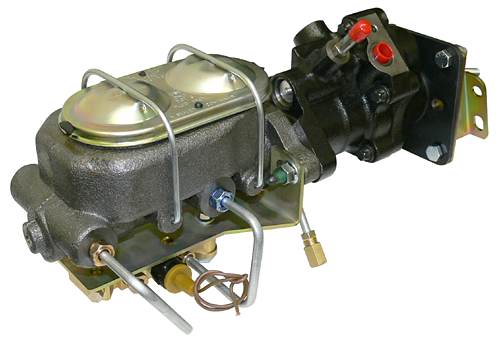

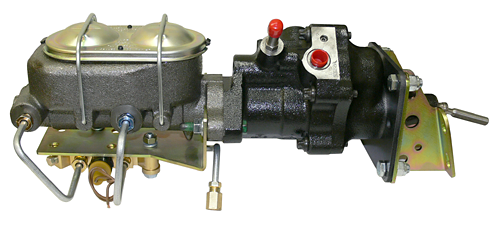

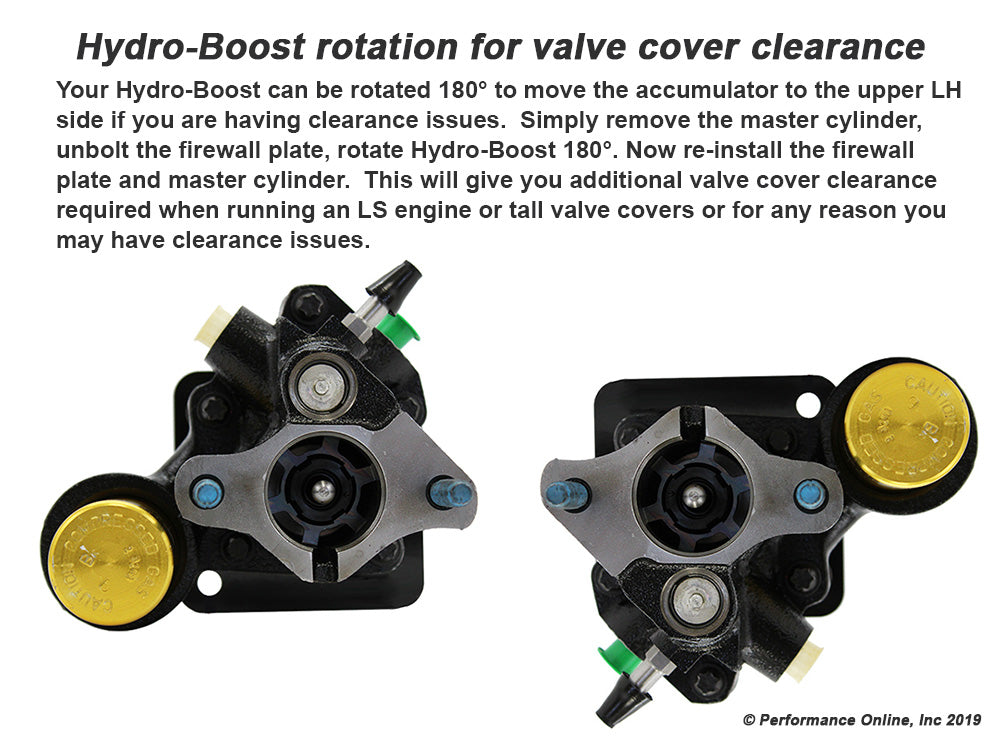

Our Hydro boost hydraulic brake assist power booster fits 1970-81 Chevy Camaro and generates up to 1800psi of line pressure to the brake calipers. It is fitted with a POL master cylinder and proportioning valve. This kit is powered by hydraulic line pressure from the power steering pump. Firewall and valve cover clearance is equivalent to a 7" diameter vacuum booster. The firewall brackets are correct for 70-81 Chevy Camaro applications.

The average power steering pump puts out from 800psi to 1400psi line pressure. The Hydro-Boost® uses this to convert to pressure to apply against the master cylinder. This greatly improves stopping performance and driver feedback. These hydraulic power boosters can be easily installed on an existing vacuum booster vehicle or used to convert a manual brake setup to power with ordinary hand tools and average mechanical ability.

Preassembled Kit includes:
• Hydraulic brake assist power booster
• 1.00" bore POL master cylinder
• POL proportioning valve, bracket and lines (works with front disc & rear disc or drum brakes)
• Firewall Mounting brackets OE spec
• Limited Lifetime Warranty

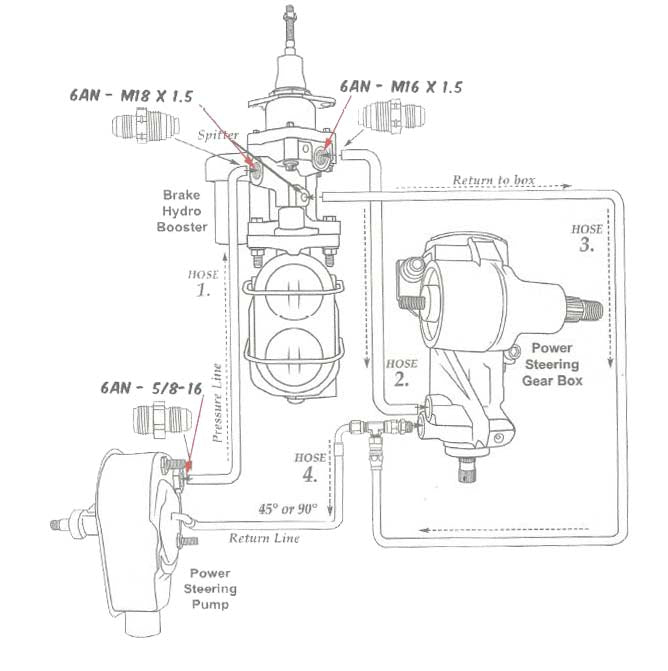

Steering hose hookup kits available in the Suggested Parts below. These are remanufactured Bosch Hydro-Boost units. Hydro-Boost® is a registered trademark of the Robert Bosch Corporation

Product Fits: 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 Chevy Camaro, Pontiac Firebird
