Performance Online (POL)
Chevy LT Engine Adapter Kit, Adjustable with Poly Urethane Mounts
Details
Performance Online (POL) billet aluminum Chevy LT engine mount adapter kit is the answer to those 2014- up Gen V LT engine swaps. Our kit allows up to 2.25" of forward adjustment. These adapter plates fit most applications and make installing your LT engine much less of a hassle. Many adapter plates do not allow the transmission to line up with the transmission cross member. POL’s improved design no-weld brackets fit rite and are CNC machined from 6061-T6 aluminum. Fits most 1947-72 GM cars and 2WD GM. The first set of holes position the LT engine in the original bell housing position, then 11/16" forward, then 1-11/16" forward, and the last set position the engine 2 1/4" inches forward from the original bell housing position
Features:
- Multiple engine settings
- Up to 2.25” forward positioning
- Great for oil pan to crossmember clearance
- Allows early three bolt type motor mounts to fit LT engines
- Uses most common engine positions for the major header manufacturers

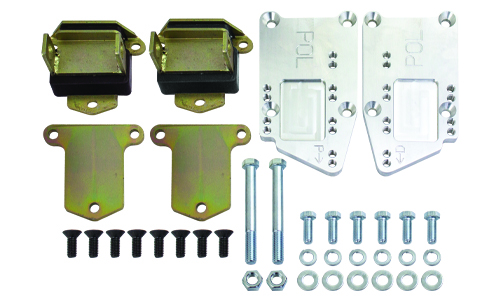

Kit includes:
- 2 - 6061-T6 Billet Aluminum plates
- 2 - Poly Urethane small block motor mounts
- Hardware
Notes:
Will not work if running factory LS a/c mount in the lower position
May require moving transmission mount on some vehicles.
Will not fit 1967-72 Chevy 4WD trucks
1947-59 Chevy trucks do not use a standard bell housing position.
May require moving transmission mount on some vehicles.
Will not fit 1967-72 Chevy 4WD trucks
1947-59 Chevy trucks do not use a standard bell housing position.
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov
What does this fit?
1958-70 Chevy Belair, Impala, Biscayne, Wagon
1947-59 Chevy and GMC Truck
1963-72 Chevy Truck
1964-72 Chevy Chevelle, El Camino
1967-69 Chevy Camaro
1962-74 Chevy Nova
1947-59 Chevy and GMC Truck
1963-72 Chevy Truck
1964-72 Chevy Chevelle, El Camino
1967-69 Chevy Camaro
1962-74 Chevy Nova
