1967-69 Chevy Camaro Hydro-Boost Power Brake Conversion with Wilwood Master Cylinder

1967-69 Chevy Camaro Hydro-Boost Power Brake Conversion with Wilwood Master Cylinder
Hydro-Boost installation Instructions
SKU HB-C6769WP
Weight 22.00 lbs
Our price: $719.99
Qty

Performance Online's all new 1967-69 Chevy Camaro and Pontiac Firebird Hydro Boost power brake booster kit is even smaller then the 7" or the 8" vacuum booster in use currently. Generates 1200 to 2000psi to the calipers and is fitted with a Wilwood master cylinder and adjustable prop valve.

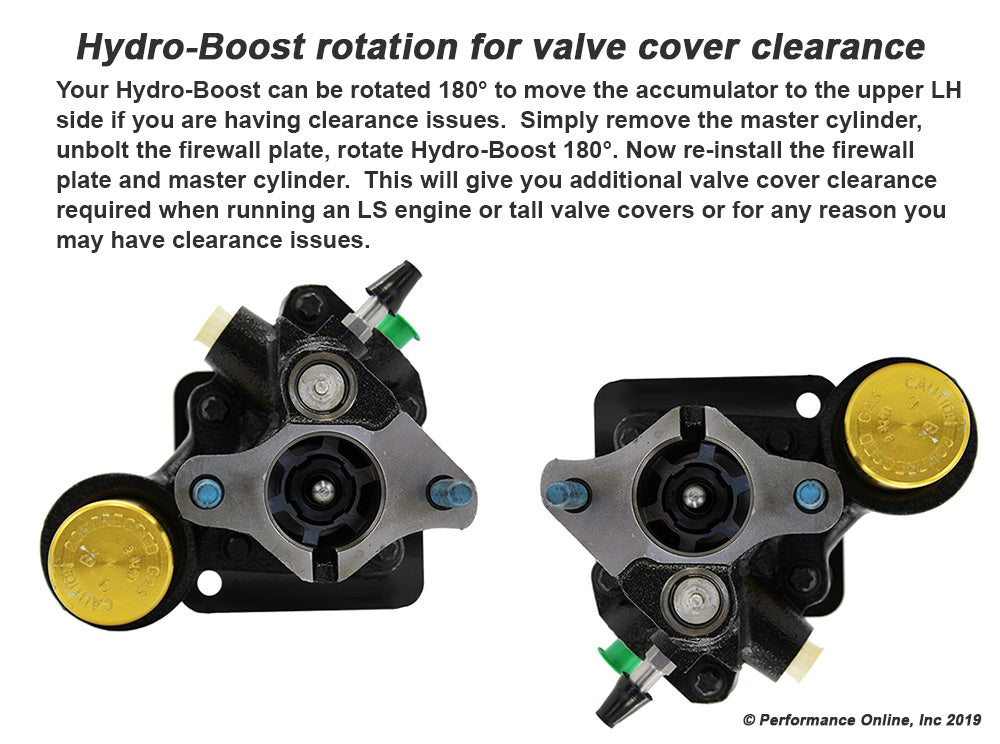

The Hydro-Boost is powered by hydraulic pressure from the power steering pump. It requires 'no vacuum'. This has several advantages. No external vacuum pump required on low vacuum high performance motors. No 'small bore' master required. Firewall and valve cover clearance is increased. Frame mounted clearance is increased.

The Hydro-Boost can be fitted any where a vacuum booster will fit. It can use stainless braided hoses or rubber type and brackets are available for most applications.

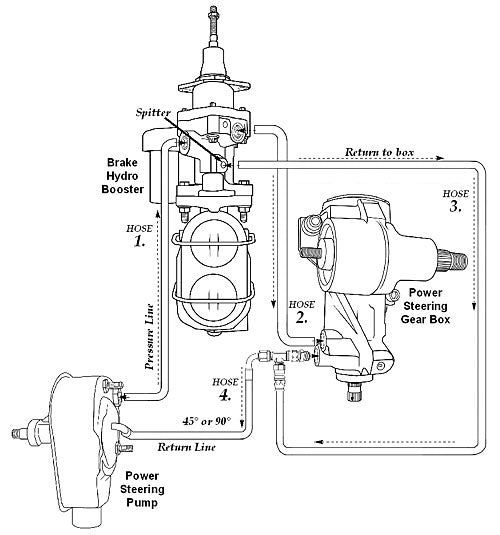

The Hydro-Boost uses fluid pressure from the existing power steering pump. The average power steering pump puts out from 800psi to 1400psi. The Hydro-Boost® uses this pressure that is always circulating through it, to convert to pressure to apply against the master cylinder. The output of the Hydro-Boost is affected by three factors.

1. The pedal ratio. We prefer that the pedal ratio be between 6:1 to 7:1.
2. The pressure output from the pump.
3. The master cylinder bore diameter. These are factors necessary to design the system that will work for a given application.

It is imperative that the system be clean. Any residual metallic sediment laying in an old pump or steering box, will be floated up and through the system when the fluid comes through on start up. If any of this sediment lodges in the relief valve of the pump, there will be no pressure from the pump. This will result in hard steering and no power brakes. A filter or a new system is required to maintain any warranty. Any metallic residue found in the unit will void warranty.

Kit includes:
• Hydro Power brake booster
• Wilwood Master cylinder (bright finish)
• Wilwood Adjustable Prop valve, bracket and lines (disc applications only)
• Firewall Mounting brackets
• Limited Lifetime Warranty

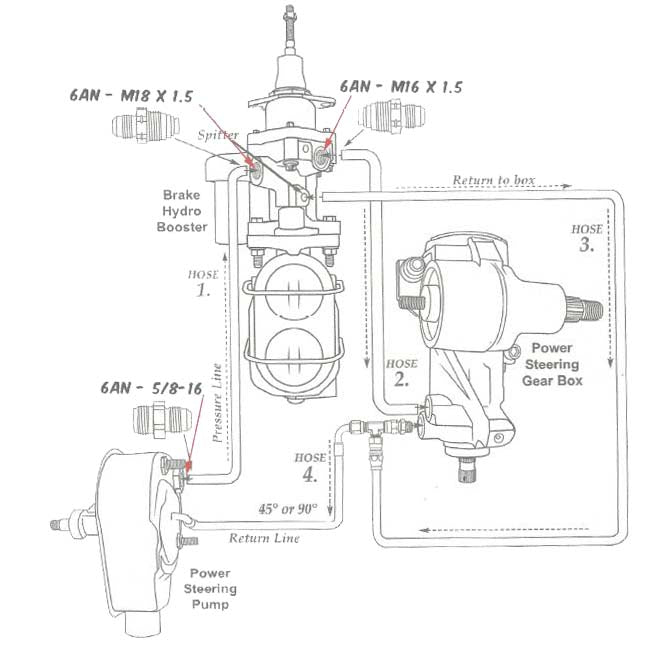

Stainless Hose kit with fittings sold separately, Add $279.99. Rubber Hose kit with fittings also available, Add $$209.99.
These are remanufactured Bosch Hydro-Boost units. Hydro-Boost® is a registered trademark of the Robert Bosch Corporation

Fits: 1967 1968 1969 Chevy Camaro, Pontiac Firebird
