Master Cylinders
Choose brake master cylinders for classic cars, trucks, restorations, and custom builds. Explore OE-style replacements, disc and drum brake options, manual and power brake configurations, multiple bore sizes, and performance master cylinders from POL and Wilwood.
Brake Master Cylinder Choices for Classic Cars & Trucks
Two master cylinders can bolt into similar-looking brake systems and still produce a very different pedal. A smaller bore generally moves less fluid with greater hydraulic advantage, while a larger bore moves more fluid with less pedal travel but can require more effort.
That relationship matters most when matching a master cylinder to disc/disc, disc/drum, or drum brakes. Manual and power-assisted systems also place different demands on bore size, pedal ratio, and fluid volume.

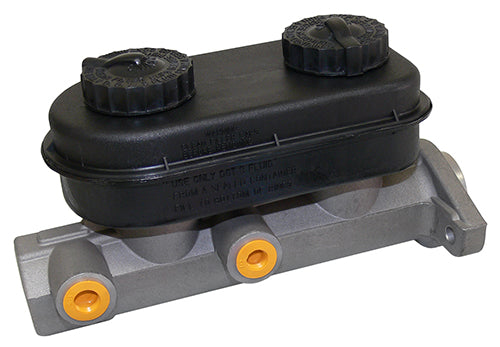

The collection includes OE-style replacements, Corvette-style GM units, dual-reservoir designs, and aluminum performance master cylinders in configurations such as 1-inch and 1-1/8-inch bores.
Some are intended for firewall mounting, others for underfloor systems, and certain packages combine the master cylinder with proportioning or metering valves, brackets, and lines. The result is not simply a choice of reservoir or finish, but a hydraulic setup that directly influences how the brake pedal feels and responds.
FAQ
How do I choose the right brake master cylinder for my vehicle?
Start by identifying whether the vehicle has disc/disc, disc/drum, or drum/drum brakes and whether the system is manual or power assisted. Then check the required bore size, mounting bolt pattern, pushrod depth, outlet-port location, and reservoir configuration. If the brakes have been modified, choose the master cylinder based on the current braking system rather than the vehicle's original factory setup.
What master cylinder bore size do I need?
The correct bore size depends on the caliper or wheel-cylinder piston area, pedal ratio, booster type, and desired pedal feel. A smaller bore generally creates more hydraulic pressure with longer pedal travel, while a larger bore moves more fluid and usually creates a firmer pedal with greater effort. This collection includes different bore sizes, including 1-inch and 1-1/8-inch GM Corvette-style options.
Do disc brakes and drum brakes use the same master cylinder?
Not always. Disc and drum brakes can have different fluid-volume, reservoir, and residual-pressure requirements. A vehicle with front discs and rear drums can also need a different setup from a four-wheel-disc system. Check whether the master cylinder is designed for disc/disc, disc/drum, or drum/drum brakes before ordering.
What is the difference between single- and dual-reservoir master cylinders?
A single-reservoir master cylinder supplies the braking system from one fluid chamber. A dual-reservoir design separates the front and rear hydraulic circuits. The collection includes original-style single-reservoir replacements as well as dual-reservoir master cylinders for different classic and modified applications.
Can the same master cylinder work with manual and power brakes?
Some master cylinders can work with either configuration, but you should not assume they are interchangeable. Bore size, pushrod depth, pedal ratio, mounting arrangement, and booster compatibility all affect how the system operates. A master cylinder that provides suitable pedal feel with power assist may require too much pedal effort when used in a manual brake system.
Should I buy a master cylinder alone or a proportioning valve kit?
That depends on how much of the braking system you are replacing or upgrading. If the existing proportioning or combination valve is already correct for your brake configuration, a master cylinder alone may be appropriate. For a conversion or newly assembled system, a matched package can simplify component selection. This collection includes kits with master cylinders, proportioning or metering valves, mounting brackets, lines, and related hardware.
What should I check before replacing my existing master cylinder?
Confirm the brake configuration, bore size, mounting bolt spacing, pushrod depth and connection, outlet-port locations, reservoir design, and available mounting space. You should also determine whether the master cylinder mounts on the firewall or under the floor and whether the vehicle uses manual brakes, a vacuum booster, or hydraulic assist. Comparing these details with the individual product specifications is more reliable than selecting a replacement based on appearance alone.
