1955-59 Chevy GMC 3100 Truck Chassis Parts
A Second Series Chevy or GMC can change dramatically once the stance, drivetrain, or suspension starts moving away from stock. Lowering the rear can affect axle clearance, a different engine changes its mounting needs, and a new front suspension can reshape the space around the drivetrain. Chassis parts for 1955-59 3100 trucks help address those connected areas with solutions for mounting, axle placement, suspension conversions, and frame clearance.
Chassis Planning for Lowered 1955-59 Chevy/GMC Trucks
On a 1955-59 Chevy or GMC truck, ride height can dictate what the chassis needs next. A modest drop may stay within the original leaf-spring layout, while an axle flip can bring the rear end close enough to the frame that shock travel and C-notch clearance become part of the same decision.

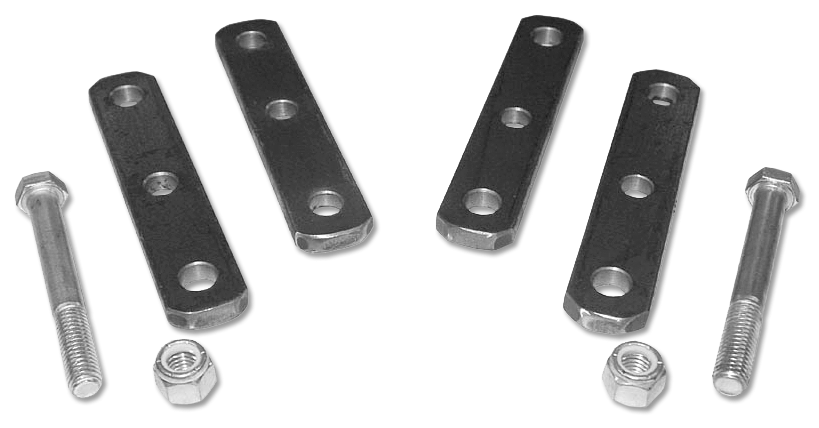

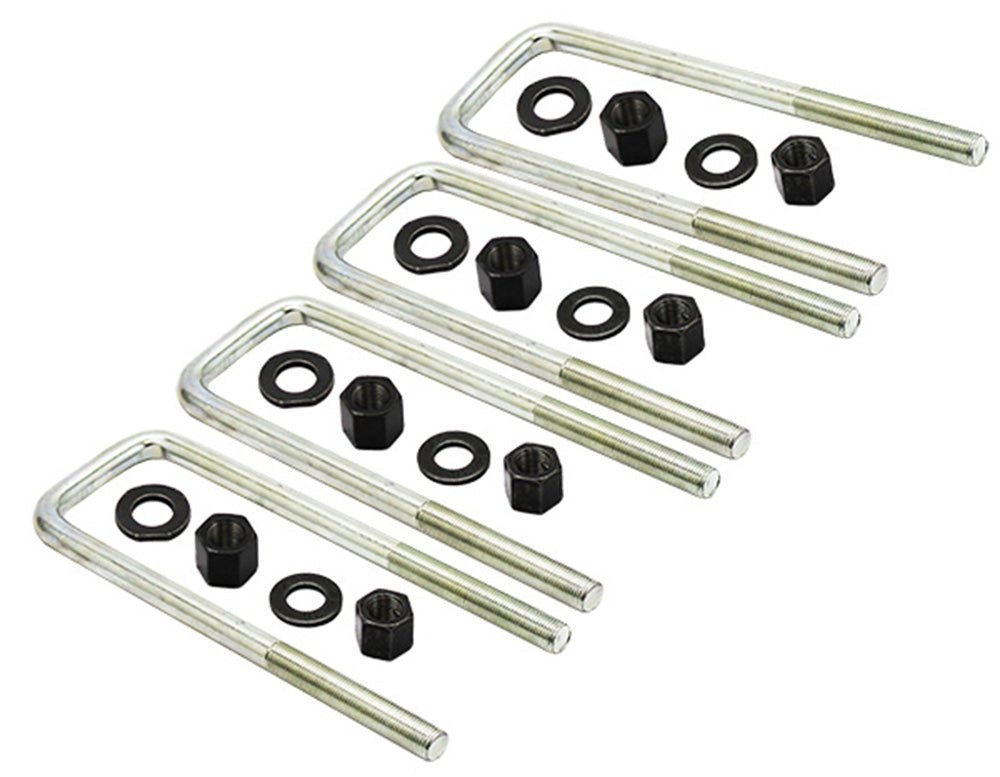

Go lower or change the suspension entirely, and the hardware changes with it. A 4-link replaces the leaf springs as the axle-locating system, while shackles, U-bolts, axle shims, and spring hardware remain relevant to trucks keeping the traditional rear arrangement.
The front half of the chassis follows a separate chain. Traditional V8 crossmembers, LS adapters, and transmission supports depend on where the drivetrain sits, but a Mustang II IFS conversion can rewrite those mounting points and require engine brackets designed specifically around the new front suspension.
That makes this collection less about isolated parts and more about sequencing the build correctly: establish suspension type and ride height first, then let axle clearance, shock placement, engine position, and drivetrain support follow that foundation.
FAQ
What chassis parts are available for 1955-59 Chevy and GMC 3100 trucks?

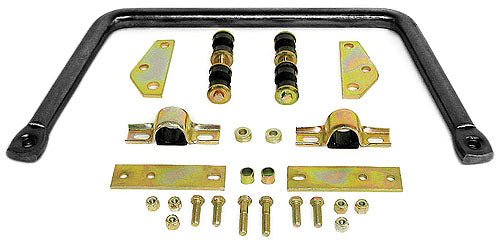

POL currently lists 57 products in this collection. Options include engine and transmission crossmembers, motor mounts, LS adapters, leaf-spring hardware, an axle-flip and rear-end conversion kit, 4-link suspension, C-notch hardware, shock mounts, sway-bar components, and other chassis parts.
Does POL offer a rear axle flip kit for 1955-59 Chevy trucks?
Yes. A 1955-59 Chevy/GMC rear-end conversion and axle flip kit is available for trucks using the applicable rear suspension configuration. Check the rear axle, leaf springs, ride height, and surrounding components when planning the installation.
Is there a C-notch kit for 1955-59 Chevy and GMC trucks?
Yes. POL lists a vehicle-specific weld-in rear frame C-notch for 1955-59 Chevy/GMC trucks. A C-notch provides additional axle-to-frame clearance when a lowered suspension configuration reduces the available space above the rear axle.

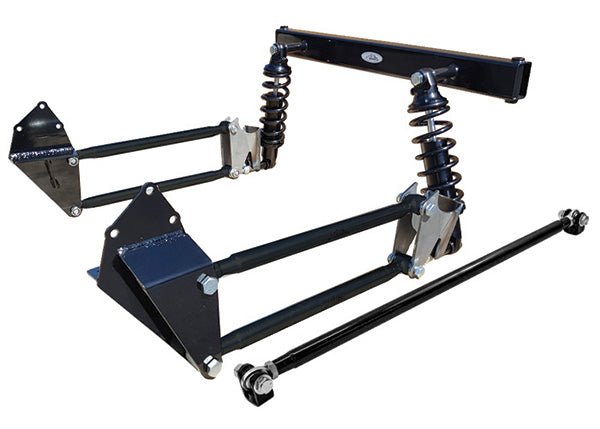

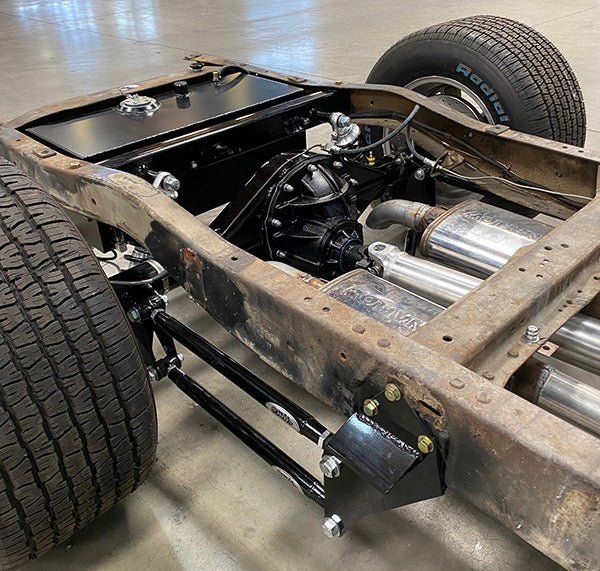

Can I convert a 1955-59 Chevy 3100 to a 4-link rear suspension?
Yes. POL currently offers a complete 1955-59 Chevy/GMC truck 4-link suspension kit. A 4-link changes how the rear axle is located compared with the original leaf-spring arrangement, so the complete rear suspension setup should be planned together.
Are V8 and LS engine mounting parts available?
Yes. The collection includes a V8 engine mount crossmember, V8 engine-and-transmission crossmember package, Chevy V8 mounts, and adjustable LS adapters. Mustang II-specific V8 mounting components are also available.

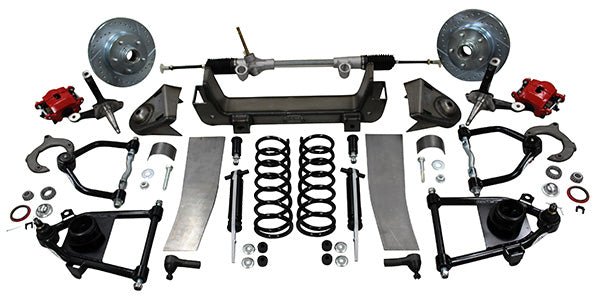

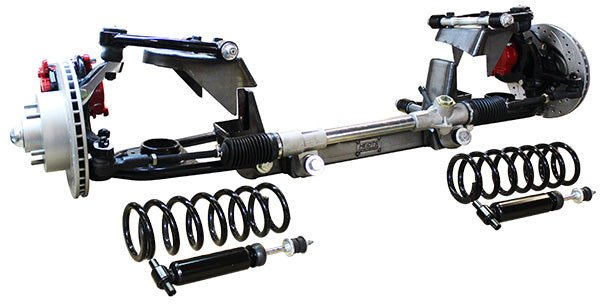

Does Mustang II suspension change which engine mounts I need?
It can. POL offers weld-in V8 engine mount brackets and an engine-and-transmission crossmember package specifically for Chevy/GMC trucks using Mustang II suspension. Match the engine mounting solution to the front suspension and crossmember configuration.
How should I choose chassis parts for a 1955-59 Chevy or GMC 3100?
Establish the intended ride height, rear axle, front and rear suspension, engine, and transmission first. Then select the mounts, crossmembers, spring hardware, C-notch, shock components, and other parts around those major choices.
