Power Steering Pumps and Components
A dependable power steering system begins with the correct supply of hydraulic fluid and the parts that carry it through the vehicle. This collection includes power steering pumps, brackets, pulleys, reservoirs, hoses, filters, and fittings for classic cars, trucks, engine swaps, rack-and-pinion conversions, and Hydropower brake installations.
The Parts Behind Proper Steering Pressure
Every part of the hydraulic circuit has a specific role. The power steering pump creates fluid flow, the pulley drives the pump at the correct speed, and the mounting bracket keeps both components aligned with the engine’s accessory drive. Hoses, fittings, and reservoirs then complete the path between the pump and steering gear.
The collection includes standard and chrome Saginaw power steering pumps, along with remote-reservoir models for installations where the fluid tank must be positioned separately. Engine-specific brackets are available for small-block and big-block Chevrolet engines, early Chevrolet inline-six engines, GM 230 and 250 six-cylinder engines, and Ford 289, 302, and 351W applications.
Pulley selection must correspond with the belt arrangement used on the engine. Available choices include single- and double-groove pulleys in black, chrome, and aluminum finishes. Matching the pulley groove count and alignment to the other accessories helps the belt run correctly without unnecessary wear or slippage.
The hose and fitting selection supports GM steering gearboxes, power rack-and-pinion systems, LS power steering pumps, and hydraulic brake-assist systems. Rubber hoses provide a traditional appearance, while braided stainless-steel kits offer a different finish and exterior protection. Inline filters and remote reservoirs are also available to support fluid cleanliness and system capacity.
Because this collection contains individual components rather than only complete kits, each part should be matched to the engine, steering gear, pump connection, belt drive, hose routing, and available mounting space.
FAQ
What type of power steering pumps are available?
The collection includes standard and chrome Saginaw-style pumps, pumps supplied with pulleys and billet caps, remote-reservoir pumps, and engine-specific pump kits. The correct option depends on the steering gear, engine accessory drive, and available space.
What is a remote-reservoir power steering pump?
A remote-reservoir pump uses a separate fluid tank rather than a reservoir attached directly to the pump body. This allows the reservoir to be mounted in a more accessible or space-efficient position within the engine compartment.
How do I choose the correct pump bracket?
The bracket must match the engine family, cylinder-head or block mounting points, accessory position, and belt arrangement. This collection includes different brackets for Chevrolet small-block, big-block, and inline-six engines, as well as Ford small-block applications.
Do I need a single- or double-groove pulley?
That depends on the vehicle’s belt routing and the accessories driven by the crankshaft. A single-groove pulley supports one belt path, while a double-groove pulley can accommodate an additional belt arrangement. The grooves must align with the crank and water-pump pulleys.
Are power steering pump pulleys universal?
No. Pulley fitment can vary by pump shaft, diameter, offset, groove count, and belt type. A pulley that physically installs may still create poor belt alignment, so its specifications should match the complete accessory drive.
What is the purpose of an inline steering filter?
An inline filter helps capture debris circulating in the power steering fluid. It can be especially useful after replacing a pump, steering gearbox, or rack, but it does not replace proper system flushing and clean installation practices.
Can the same hose kit fit a gearbox and rack-and-pinion?
Not automatically. Steering gearboxes and rack-and-pinion units may use different fittings, port threads, hose lengths, and pressure connections. The collection provides separate hose kits for GM gearboxes and power rack-and-pinion systems.

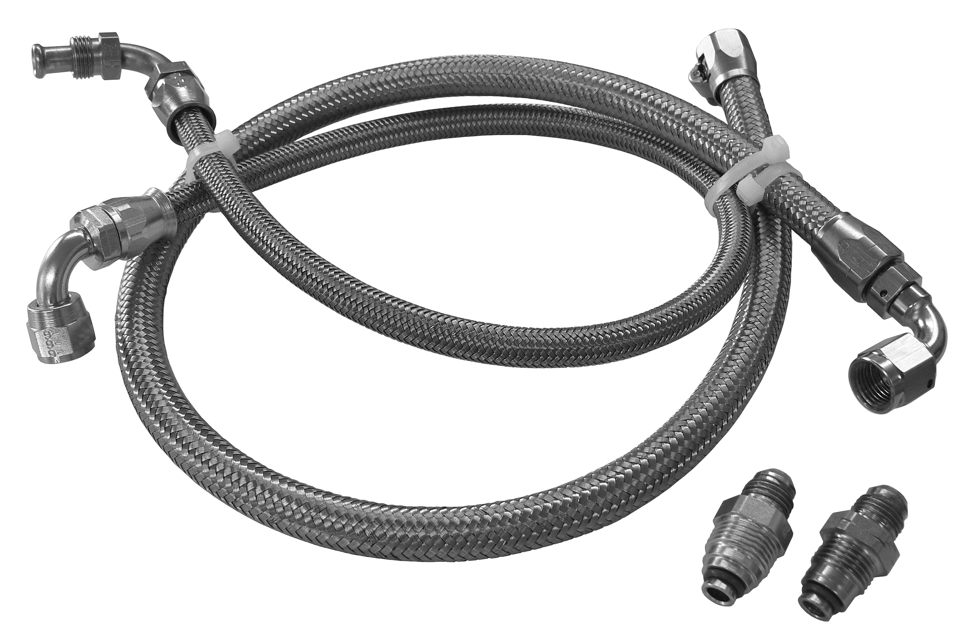

What is the difference between rubber and braided hoses?
Rubber hose kits provide a conventional appearance and flexible routing. Braided stainless-steel hoses add an exterior braided layer and a performance-oriented appearance. Either type must have the correct pressure rating and fittings for the system.
Are LS power steering pumps compatible with older gearboxes?
They can be connected to many older steering systems when the correct pressure and return hoses, adapters, fittings, and pump configuration are used. The collection includes a stainless-steel hose kit specifically intended for LS power steering pumps.
Can these components support Hydropower brakes?
Yes. The collection includes Hydropower pressure and return hose kits, fittings, and return-to-pump components. The plumbing must be configured so the steering gear and hydraulic brake-assist unit receive proper flow without restricted return paths.
