Proportioning Valves and Accessories
Brake proportioning valves help manage hydraulic pressure between the front and rear brakes for more balanced system operation. This collection includes fixed and adjustable valves, combination valve kits, mounting brackets, hard lines, fittings, warning-light connectors, and bleeding tools for classic cars, trucks, and custom brake systems.
Control Brake Pressure with the Right Valve
Brake pressure must be distributed according to the vehicle’s front and rear brake configuration. A proportioning valve helps limit pressure to the rear brakes, while a combination valve may integrate proportioning, pressure-differential monitoring, and other hydraulic functions within one assembly.

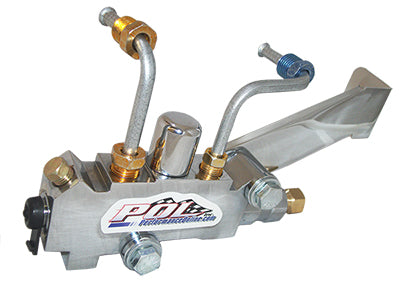

The products in this collection support several installation layouts. Fixed GM-style valves are available for front-disc/rear-drum and four-wheel-disc systems, while adjustable valves allow rear pressure to be tuned for a custom setup. Side-mount kits position the valve beside the master cylinder and may include the required bracket, hard lines, adapters, and brake-warning switch.
Application-specific options are also available for classic Ford brake systems, along with complete master-cylinder and proportioning-valve packages. These assemblies reduce the need to source and match individual plumbing components, but the selected valve must still correspond with the brake layout and master-cylinder port arrangement.
Accessories such as AC Delco valve fittings and bleeding tools support installation and maintenance. The correct fittings allow the valve to connect with the chosen brake lines, while a bleeding tool temporarily holds the pressure-differential mechanism in position so fluid can move through the system during bleeding.
Before ordering, identify whether the vehicle has front discs with rear drums or discs at all four wheels, then confirm the valve type, mounting position, port threads, brake-line sizes, master-cylinder compatibility, and accessories included.
FAQ
What does a brake proportioning valve do?
A brake proportioning valve limits hydraulic pressure to the rear brakes after a predetermined point. This helps reduce the likelihood of the rear wheels locking before the front wheels during harder braking.
What is the difference between a proportioning valve and a combination valve?

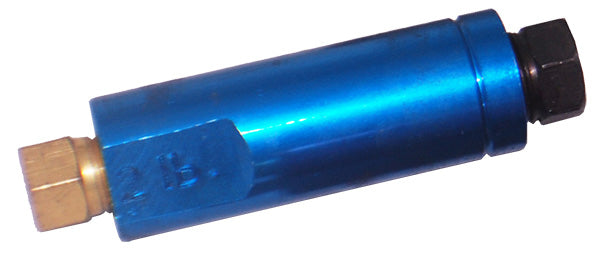

A proportioning valve primarily manages rear brake pressure. A combination valve may also include a pressure-differential switch, warning-light connection, metering function, or residual-pressure control, depending on its design.
Do I need a different valve for disc/drum and disc/disc brakes?
Yes. Front-disc/rear-drum and four-wheel-disc systems have different hydraulic requirements. Fixed combination valves are commonly offered in separate versions for each configuration, so the valve must match the installed brakes.

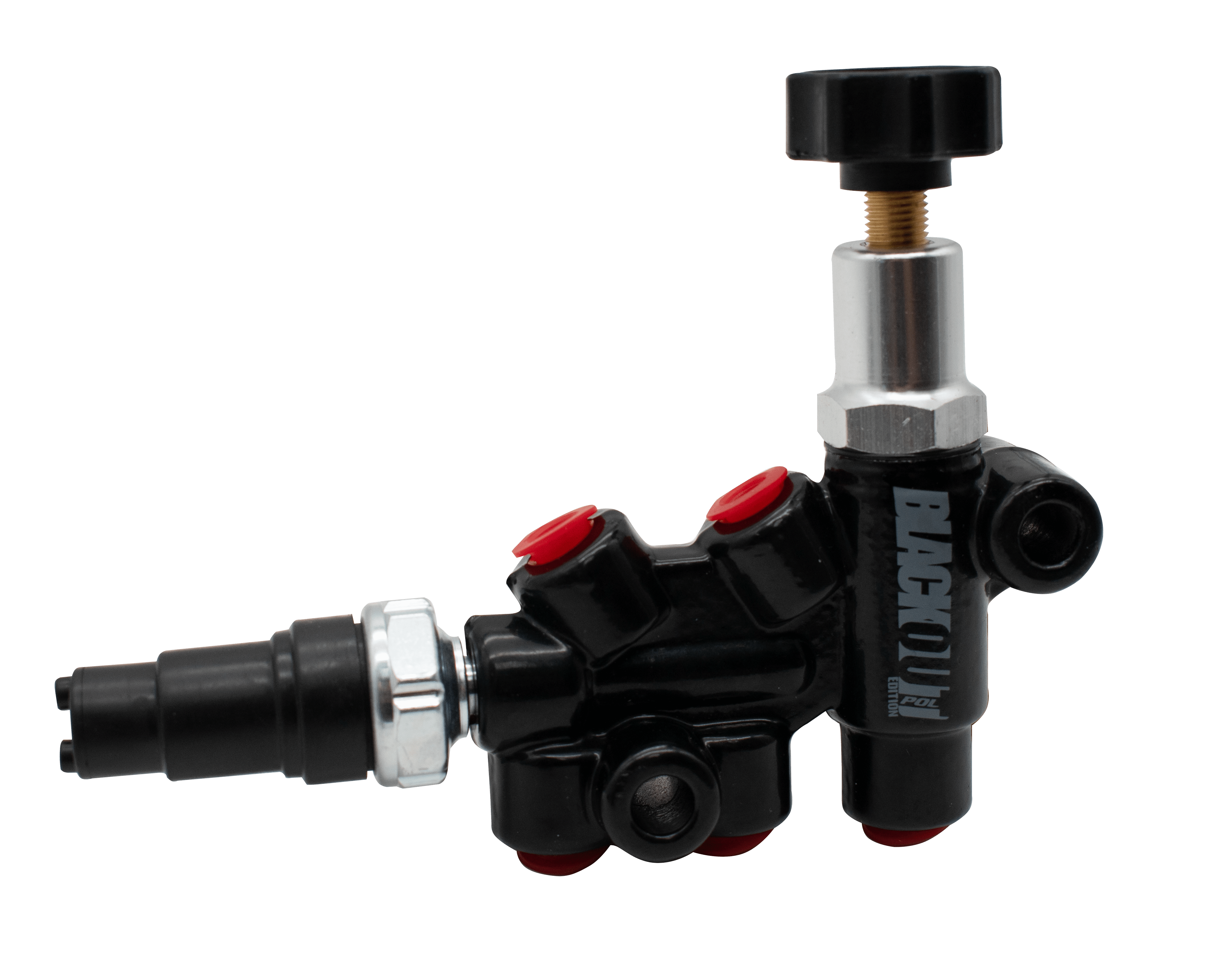

When should I use an adjustable proportioning valve?
An adjustable valve is useful when the rear brake pressure needs to be tuned for a custom combination of calipers, wheel cylinders, tire sizes, vehicle weight, or weight distribution. It should be adjusted carefully through controlled testing.
Where is an adjustable valve installed?
It is normally installed in the rear brake line after the master cylinder. Some kits mount the valve beside the master cylinder and include brackets, hard lines, adapters, and a brake-light switch.
Can an adjustable valve fix an incorrectly matched system?
No. It can fine-tune rear pressure, but it cannot correct incompatible calipers, an unsuitable master cylinder, poor pedal geometry, air in the lines, or other mechanical and hydraulic problems.
Why does the valve have a warning-light switch?
The switch monitors a pressure difference between the front and rear hydraulic circuits. If one side loses pressure, the internal mechanism can move and activate the dashboard brake-warning light.
What is a proportioning valve bleed tool?
A bleed tool temporarily replaces the warning-light switch and holds the internal pressure-differential valve in position during brake bleeding. This helps prevent the valve from shifting and restricting fluid flow while air is removed.
Do proportioning valve kits include brake lines?
Some kits include a mounting bracket and pre-bent master-cylinder lines, while standalone valves may not. Fittings and adapters may also be separate, so check the individual product contents before ordering.
How do I match a valve to my master cylinder?
Check the master-cylinder port location, thread size, line diameter, valve mounting position, and whether the system is disc/drum or disc/disc. For example, one side-mount GM kit is designed for 1/2-20 and 9/16-18 master-cylinder ports.
