Performance Online (POL)
·
SKU: CNK6372-D
1963-72 Chevy, GMC C10,C20 Truck Frame C Notch Kit, Heavy Duty Bolt in Type
$218.13
1
Performance Online HEAVY DUTY bolt-in frame C-notch kit for 1963-72 Chevy and GMC trucks is a must for Air Ride applications or trucks lowered more than 4". This kit adds axle clearance, strengthens the frame on lowered applications, and reduces bottoming out.
Key Features
Application 1963-72 Chevy & GMC Trucks
Design Heavy Duty Bolt-In

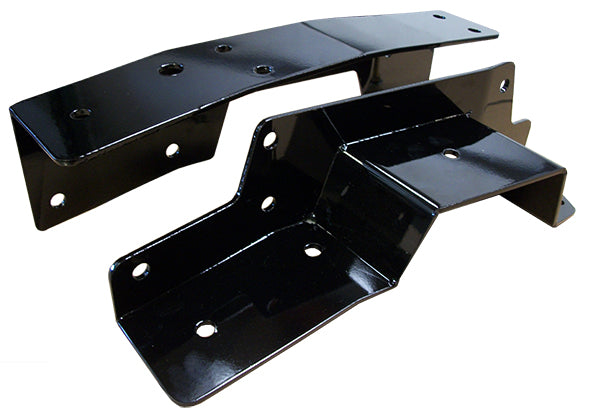

Kit Configuration 2-Piece C-Notch Kit
Recommended For Air Ride / 4"+ Drop

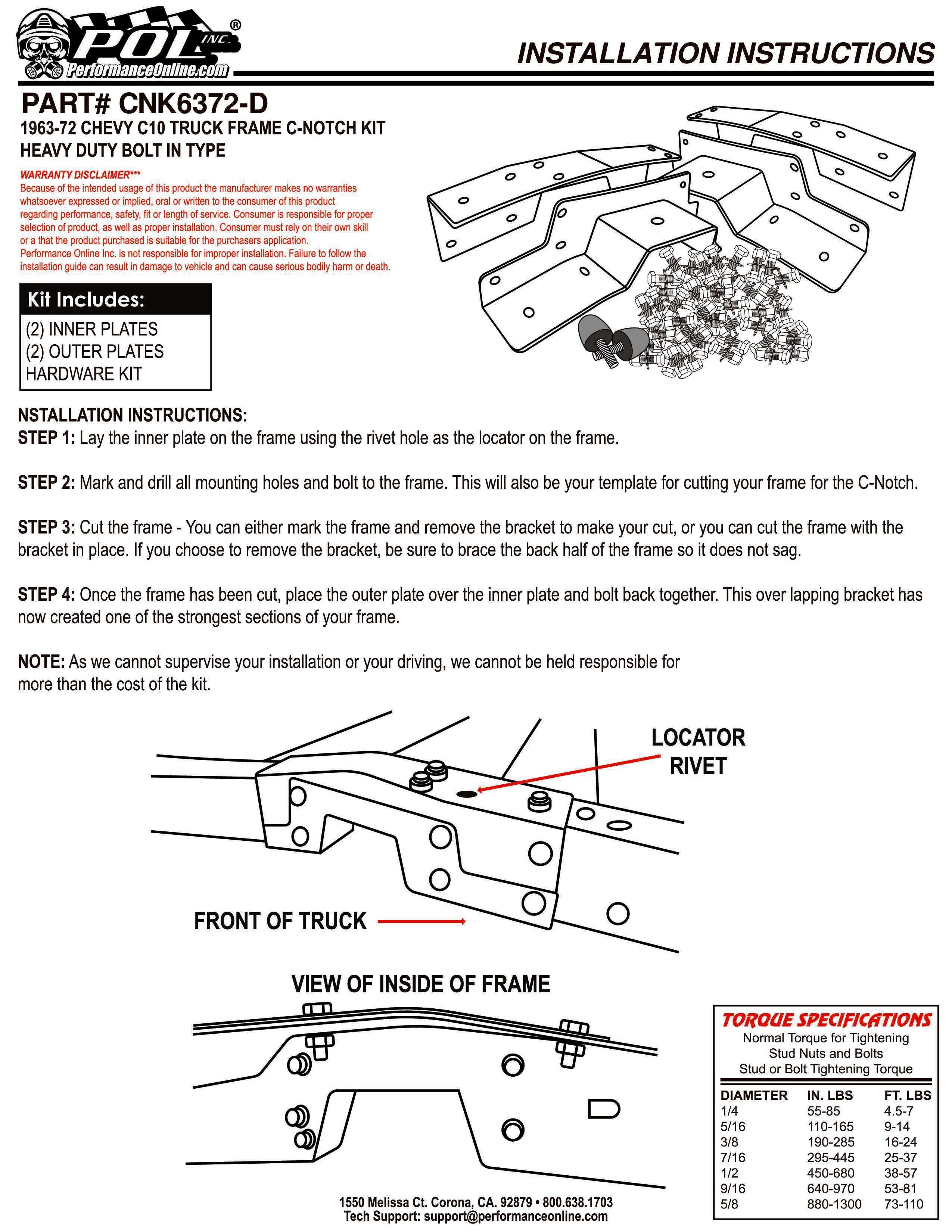

Installation Design

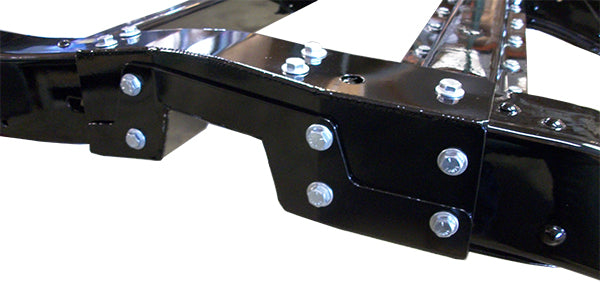

The 2-piece design helps keep the frame secure and prevents sagging during installation. With the upper plate bolted into position, it helps keep the frame straight while also acting as a template for where the frame needs to be cut.

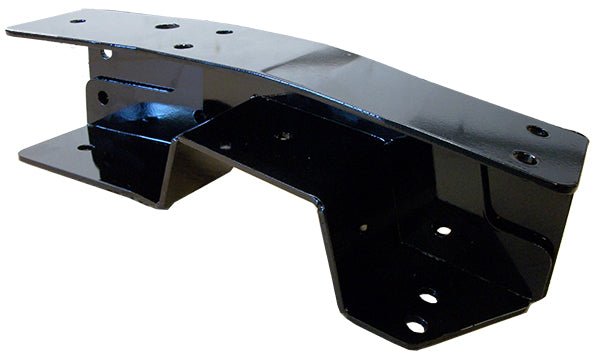

The bottom plate then overlaps the upper plate to create a strong double-wall C-notch structure. The entire kit is designed for bolt-in installation.
Benefits
- Provides additional axle clearance
- Helps strengthen the frame on lowered trucks
- Reduces bottoming out
- Helps maintain proper frame position during installation
- Double-wall C-notch construction
- Designed for consistent frame location
- Bolt-in installation
