1963-72 Chevy, GMC C10 Truck Deluxe Adjustable Panhard Bar, Trac Bar

1963-72 Chevy, GMC C10 Truck Deluxe Adjustable Panhard Bar, Trac Bar

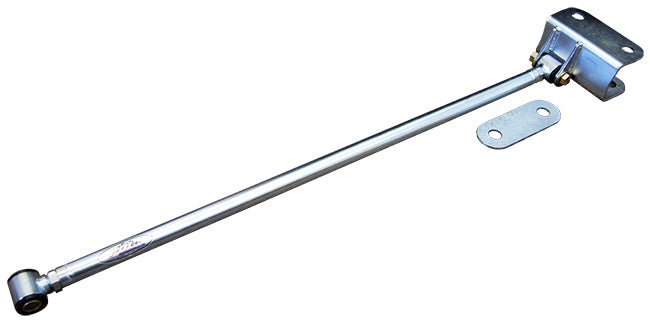

1963-72 Chevy C10 Deluxe Track Bar
Part #: DTB6572
Weight: 14.00 lbs
Our price: $109.99
Qty
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

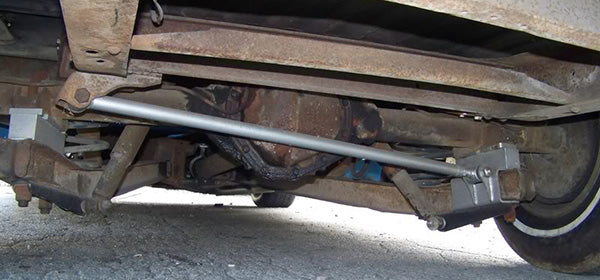

Our 1963-72 Chevy C10 truck fully adjustable panhard bar/trac bar is a must when lowering the rear of the vehicle 4" or more with lowered coils. Centers the rear end and allows the vehicle to drive straight and handle better. Extends approx. up to 3” compared to the fixed location stock bar. Attaches on frame rail on drivers side and to a custom bracket that monts to the trailing arm on the passenger side. This is the best option in trac bars for air ride vehicles.

Shortest adjusted length: 34.250", Longest adjusted length: Optimal 38" with 1" thread in, Max 38.500" with 3/4" thread in

Fits: 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 Chevy C10 Truck

Kit Includes:

  • Adjustable Trac Bar
  • Trailing Arm Mount
  • Drivers side Spacer
  • Poly Urethane Bushings

Works with lowered trucks. Will not work with heavy duty deep differential cover. Will not work with factory C20 trailng arms due to factory re-inforcement plates
