Chevy V8 SBC Small Block Alternator Bracket Kit SWP

Chevy V8 SBC Small Block Alternator Bracket Kit SWP
Corvette Alternator Bracket GM Part #'s 3951337 & 14015539 Corvette Alternator Bracket GM Part #'s 3951337 & 14015539 Corvette Alternator Bracket GM Part #'s 3951337 & 14015539 Chevy V8 SBC Small Block Alternator Bracket Kit SWP
Part #: ABK0001
Weight: 3.00 lbs
Our price: $69.99

Click here to be notified of price drops for this item
Adjuster Bracket
Qty
CA Prop 65 Warning - cancer and reproductive harm www.p65warnings.ca.gov

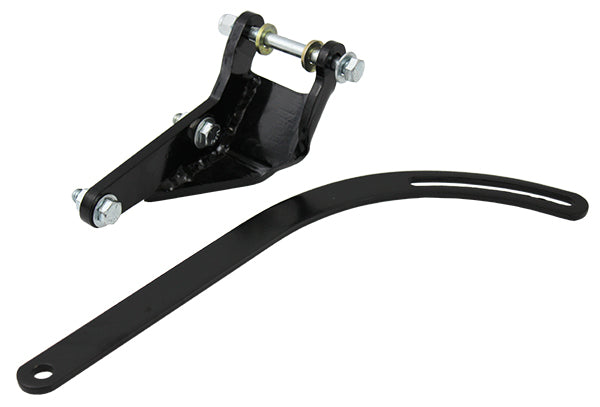

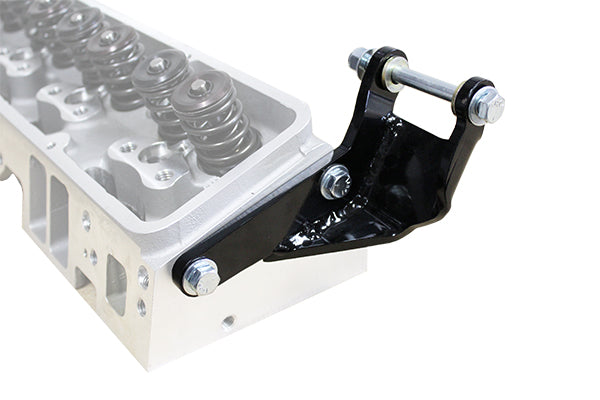

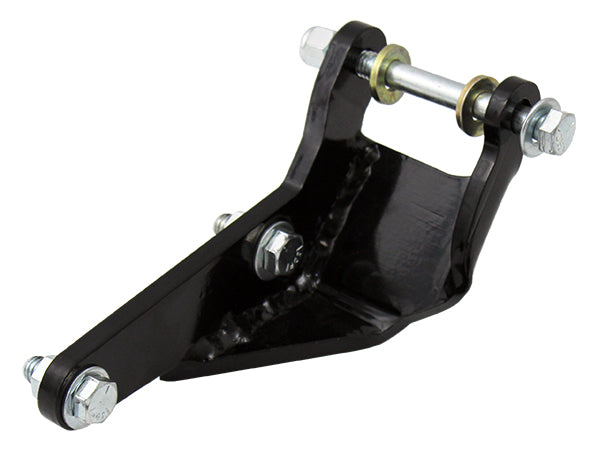

Our heavy duty alternator bracket mounts on driver side cylinder head and places the alternator alongside the valve cover. These are the perfect upgrade when using aftermarket headers. Heads must have accessory bolt holes for proper fit and alignment. This bracket is based on the 1967-72 Chevy and GMC truck and 1972-82 Covette with a 63 amp alterator. Will not work with 70 amp alternators. Not designed to replace GM Part #'s 3951337, 14015539. Great universal alternator mount.

Applications:

  • Small Block V8 Chevy
  • Headers or Manifolds
  • Short Water Pump
  • Standard or aftermarket Valve Cover

Kit includes:

  • Alternator Bracket
  • Attaching Hardware
  • Alternator Bolt & Spacers
  • Fits most Chevy applications with a small block and short water pump

Notes:

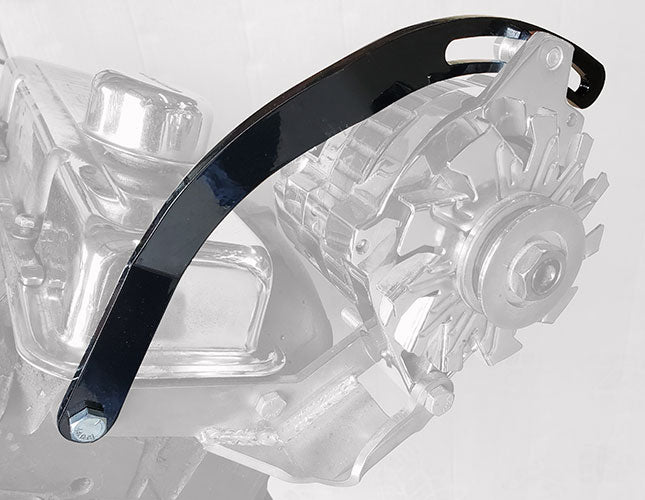

Adjuster bracket sold separate. Adjuster bracket measures 13"
Mounting hole to hole distance is 3.625"

Application:

Universal applications
