Brake Booster Guide for Classic Cars and Trucks
A brake booster can transform how a classic feels from the driver's seat, especially when you're moving from manual brakes or building a disc brake system. But adding power brake assist is not simply a matter of fitting the largest booster available. Engine vacuum, master cylinder sizing, pedal geometry, brake configuration, and firewall clearance must all work together.
How Brake Boosters Fit Into a Power Brake System
The brake booster sits between your pedal input and the master cylinder, adding assist so the driver does not have to provide all the force needed to apply the brakes. That sounds straightforward, but the booster is only one part of the system. How well it works depends on the surrounding components and the source of the assist.
Power Assist Changes Pedal Effort, Not Brake Basics
A power brake booster helps apply force to the master cylinder when you press the pedal. The master cylinder then converts that mechanical input into hydraulic pressure, which travels through the brake system to operate the calipers or wheel cylinders.
That distinction matters. The booster does not replace the master cylinder, proportioning valve, calipers, drums, or other hydraulic components. It assists in reducing the effort required from the driver.
A manual brake system performs the same basic hydraulic job without that added assist. The driver supplies more of the force through the pedal and its mechanical leverage.
Power brake assist can make a classic more comfortable in modern traffic, but pedal feel still depends on the complete combination. Master cylinder bore, pedal ratio, brake type, caliper piston area, and system condition all contribute to what you feel under your foot.
Additional assist cannot correct a mismatch elsewhere in the braking system.
Vacuum and Hydraulic Boosters Create Assist Differently
Most enthusiasts encounter two main brake booster types when working on classic cars and trucks: vacuum and hydraulic.

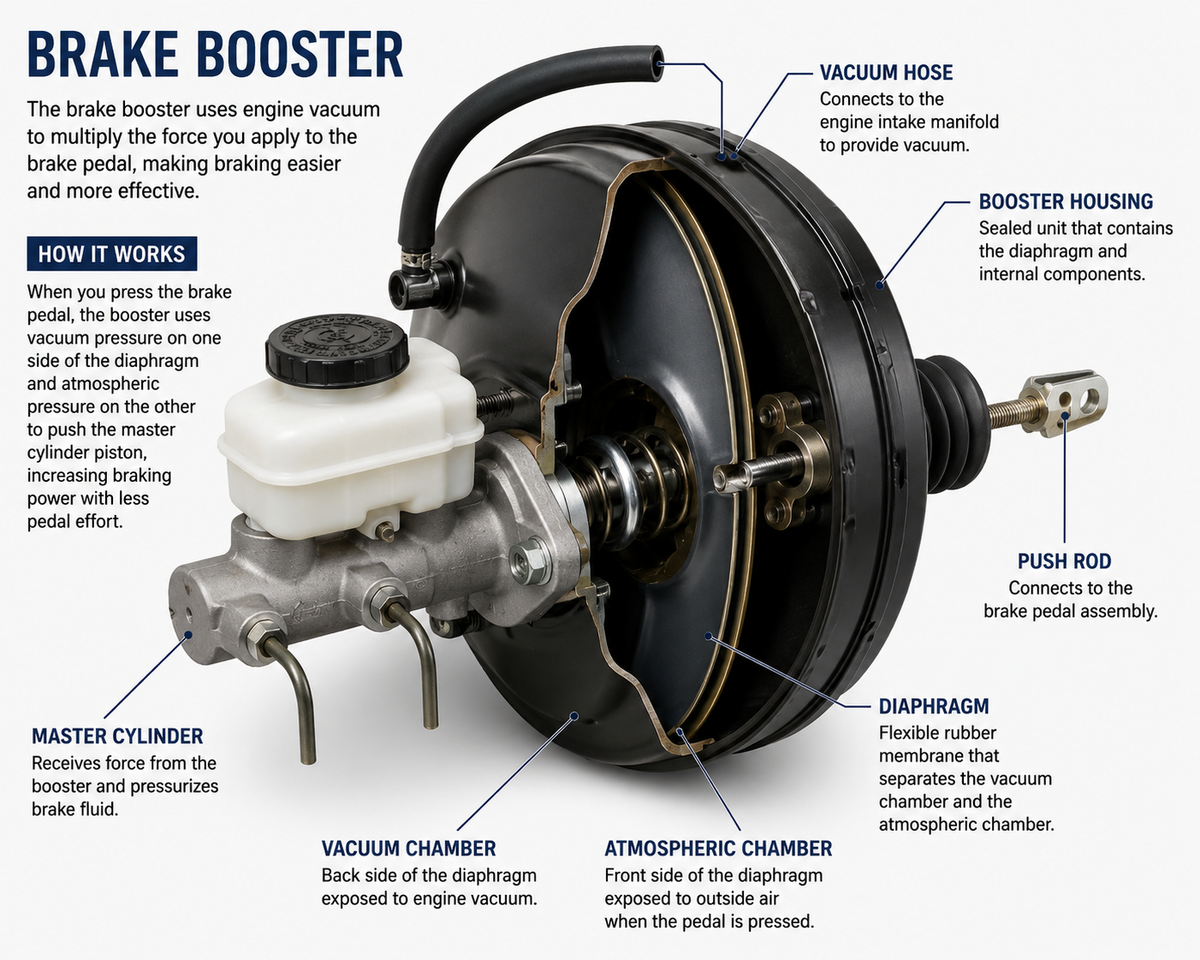

A vacuum power brake booster uses a pressure difference across an internal diaphragm to assist pedal input. Engine manifold vacuum traditionally provides the vacuum source. The system is simple, proven, and well suited to many street-driven classics.
Hydraulic assist takes a different approach. Instead of relying on engine vacuum, it uses hydraulic pressure supplied by the power steering system. Performance Online's Hydropower systems, for example, use pressure from the power steering pump to provide brake assist. POL offers these systems for applications including the Chevy Camaro, Pontiac GTO, and classic trucks.
A healthy street engine with adequate manifold vacuum may work well with a conventional vacuum booster. A performance engine with an aggressive camshaft may produce less vacuum at idle, making hydraulic assist worth considering.
At the planning stage, the vehicle needs a reliable assist source that suits the engine and braking system.
The Master Cylinder Has to Work With the Booster
It is easy to focus on the booster and treat the master cylinder as a separate decision. In practice, they work directly together.
When the booster assists your pedal input, its output pushrod acts on the master cylinder. Master cylinder bore diameter affects how much fluid moves for a given amount of piston travel and how much input force the system requires.
That means bore size can influence both pedal travel and pedal effort. You cannot judge the ideal master cylinder simply by whether it physically bolts to the booster.
The brake configuration matters too. Drum/drum, disc/drum, and four-wheel disc systems can have different hydraulic requirements. Proportioning and residual pressure requirements must also match the system.
POL's vehicle-specific power brake booster packages reflect this relationship by combining boosters with master cylinders and, on applicable disc systems, proportioning hardware. Some applications offer different brake configurations rather than using one hydraulic package for every setup.
When you're planning power brakes, start with the complete brake configuration. Then make sure the booster, master cylinder, pedal geometry, and hydraulic components match.
Choose a Booster Around the Engine and Chassis
Classic cars and trucks rarely give you unlimited room around the firewall, valve covers, steering column, engine, and hood. Modified engines can add another constraint by changing available vacuum. The right brake booster needs to provide suitable assist while physically fitting the vehicle you have built.
Engine Vacuum Can Shape the Booster Choice
A conventional vacuum brake booster needs a dependable vacuum source. On many mild street engines, manifold vacuum provides that source without much trouble.
A more aggressive camshaft can change the situation because cam duration and overlap affect cylinder filling and manifold pressure. An engine with a large performance cam may produce noticeably less manifold vacuum at idle than a mild factory-style combination. If vacuum becomes too low or unstable, a conventional booster may not provide consistent assist under every operating condition.
Do not assume an aggressive-sounding engine automatically requires hydraulic assist, though. Measure the vacuum the engine actually produces and evaluate the complete combination before changing the brake system.
Vacuum pumps and reservoirs can provide additional options in some builds. Hydraulic assist offers another path because it removes engine vacuum from the equation.
POL's Hydropower systems are offered for applications where engine vacuum may not suit a conventional vacuum booster.
Booster Diameter and Diaphragm Design Affect Packaging
Vacuum boosters come in different diameters and diaphragm configurations. Those dimensions matter because a classic engine bay can become crowded quickly.
A larger-diameter booster provides more diaphragm area, but it also occupies more space at the firewall. Valve covers, clutch hardware, steering components, inner fenders, and engine position can limit available room.
Smaller-diameter boosters help where clearance is tight. Dual-diaphragm designs use two diaphragms to provide additional effective area without requiring the same outside diameter as a much larger single-diaphragm unit.
Performance Online offers universal power brake boosters in several diameters and configurations. Its 7-inch and 8-inch single-diaphragm units are examples intended for custom applications.
Do not choose diameter by appearance alone. A compact booster still needs to work with the intended brake system, and a larger unit is only useful if it clears everything around it.
Measure the firewall area with the engine and relevant accessories in place. Valve covers, wiring, plumbing, and other components can quickly reduce the available space.
Firewall and Frame Mounting Can Change the Layout
Not every classic mounts its brake booster in the same place. Firewall-mounted power brakes are familiar, but some older vehicles use underfloor or frame-mounted arrangements.
That changes more than the bracket. Mounting location can change pedal linkage, pushrod alignment, master cylinder position, exhaust clearance, ground clearance, and maintenance access.
Performance Online's classic applications illustrate the difference. Its 1949-51 Mercury power brake package mounts beneath the floor on the frame rail and connects to the original pedal through bracket and pivot hardware. POL's 1949-51 Ford full-size application also uses an underfloor arrangement with a dedicated pedal assembly.
Modified classics need even closer inspection. Headers may reduce space near a frame-mounted master cylinder, while drivetrain changes can alter clearance elsewhere.
Hydraulic assist can help in tight installations by avoiding the space a large-diameter vacuum booster requires. POL notes that its Hydropower installations provide firewall and valve-cover clearance comparable to a compact vacuum booster on several vehicle-specific applications.
Match Power Assist to the Way the Classic Is Built
A restored cruiser, street-driven muscle car, classic pickup, and Pro Touring build do not necessarily need the same brake assist. Vehicle weight, brake configuration, engine combination, available space, and driving conditions all influence what feels right.
Drum, Disc, and Mixed Systems Need the Right Combination
Power assist and brake type are related, but they aren't the same. A booster can be used with different brake configurations when the surrounding hydraulic system is properly matched.
That matters on classics because you may be dealing with four-wheel drums, front disc/rear drum brakes, or four-wheel discs. Many cars and trucks have also been converted from their factory configuration at some point.
Before selecting a brake booster, identify what is actually on the vehicle. Don't assume the current master cylinder or proportioning hardware is correct just because the brakes work. Previous owners may have mixed components over decades of repairs and modifications.
A disc brake conversion is a good time to evaluate the entire system. POL offers power brake packages configured around drum, two-wheel disc, and four-wheel disc applications on various classic platforms.
The booster should complement that system. Master cylinder bore, pedal ratio, proportioning, caliper piston area, and available assist all need to make sense together rather than being selected around the booster alone.
Pedal Ratio Still Matters With Power Brakes
Pedal ratio describes the mechanical leverage created by the relationship between the pedal pivot, pushrod attachment point, and pedal pad. It is easy to overlook because the booster provides additional force, but the pedal remains the driver's first mechanical connection to the brake system.
Changing from manual to power brakes may require changes to pushrod position, linkage, brackets, or pedal geometry depending on the vehicle and conversion.
Incorrect geometry can create poor pedal travel or an awkward relationship between pedal movement and booster input. Pushrod alignment also matters because the booster and master cylinder need to operate along the intended axis without side loading.
This is particularly important when using universal parts. A universal booster may have suitable dimensions and assist characteristics, but that does not mean its mounting pattern and input rod automatically match a 60-year-old pedal assembly.
For this reason, POL offers vehicle-specific brackets, pedal rods, and related hardware alongside universal boosters. Its universal Power Regulator Series boosters use standard mounting patterns, but installers still need to account for the vehicle and master-cylinder arrangement.
Power assist reduces effort. It does not make pedal geometry irrelevant.
Build for Real Driving Conditions
Think about how the car or truck behaves outside the garage.
A lightweight weekend cruiser may need a different pedal feel from a heavier classic truck. A vehicle used mostly around town may see frequent stops and repeated low-speed braking, while a highway cruiser may value consistent pedal feel and comfortable assist over longer drives.
A more powerful restomod brings another consideration. More horsepower does not directly determine booster size, but the way the vehicle is driven may place greater demands on the complete braking system.
Tire grip, vehicle weight, brake size, heat capacity, and hydraulic balance all matter when braking demands increase.
Driver preference also comes into play. Some enthusiasts like a firmer pedal with more feedback. Others prefer greater assist and lighter effort. Neither preference should override correct system design, but pedal feel is part of what makes a classic enjoyable to drive.
We would rather match the brake system to the vehicle than build around the assumption that more assist is always better.
Plan the Complete Power Brake System Before Buying
Once you know the brake configuration, engine vacuum, available space, and driving goals, booster selection becomes much easier. The final step is checking how the parts will work together on the actual vehicle. That means measuring, verifying compatibility, and deciding whether a vehicle-specific package or custom combination makes more sense.
Measure the Vehicle Instead of Assuming Fitment
Classic vehicles can differ significantly after decades of modifications. Even two cars from the same model year may no longer have identical engine, transmission, firewall, or brake configurations.
Measure before ordering. Check available booster diameter and depth, along with valve-cover clearance, steering components, wiring, clutch linkage, and anything else near the firewall.
For frame-mounted systems, inspect exhaust routing, ground clearance, pedal linkage, and access to the master cylinder. If the car is lowered, make sure underfloor components remain protected.
Also verify the mounting pattern and pushrod arrangement. A booster that fits the available space still needs to connect correctly to the pedal and master cylinder.
Performance Online carries both universal boosters and application-specific power brake packages, including BlackOut Series systems for several classic car and truck platforms.
Starting with the right application can reduce fabrication, but you still need to account for vehicle modifications.
Decide Between Vacuum and Hydraulic Assist Early
Do not wait until the rest of the brake system is assembled to decide how you will create power assist.
If you're planning a vacuum booster, confirm that the engine can provide a suitable vacuum source and that the booster fits the available space. Consider where the vacuum hose and check valve will run and whether other engine modifications affect the installation.
If you're considering hydraulic assist, look at the power steering system at the same time. Hose routing, fittings, pump condition, fluid flow, and available mounting space become part of the brake installation.
Choosing the assist type early also helps prevent buying components twice. Once you've chosen the booster approach, you can plan the master cylinder, brackets, plumbing, and surrounding hardware.
Treat Symptoms, Replacement, and Repair Separately
A brake booster that is already installed introduces a different set of questions. A hard pedal, inconsistent assist, unusual noises, or other braking symptoms may suggest a booster problem, but they do not prove the booster itself has failed.
Vacuum supply, check valves, hoses, master cylinder condition, pedal linkage, and other brake components can create problems that feel similar from the driver's seat. Diagnosis should come before replacement.
If the booster does need attention, the next decision is whether replacement or rebuilding makes sense. That can depend on booster design, internal condition, parts availability, originality, and the build goals.
A restoration may place more value on retaining an original-style component. A modified street car may benefit from moving to a different power-assist arrangement when the existing booster no longer suits the engine or chassis.
Replacement and repair solve different problems, but both start with understanding how the booster works with the rest of the brake system.
For a classic car or truck, choose the booster around the brakes, engine, chassis, pedal geometry, and real driving conditions. That makes power assist part of a balanced braking system, not just another component hanging from the firewall.
