Why Dipstick Tube Fitment Matters on a Classic

A dipstick tube may look like little more than a guide for the oil dipstick, but its position and length affect how the complete assembly works. On a classic car or truck, headers, engine swaps, aftermarket oil pans, and decades of previous repairs can complicate what was once a simple factory arrangement. Correct dipstick tube fitment keeps the dipstick accessible, properly positioned, and able to provide a dependable oil-level reference.

How the Dipstick Tube Fits Into the System

The oil dipstick tube guides the dipstick into the engine and establishes a consistent reference for where the handle seats. Because tube design varies by engine and application, a replacement needs to match more than the diameter of the opening it fits into.

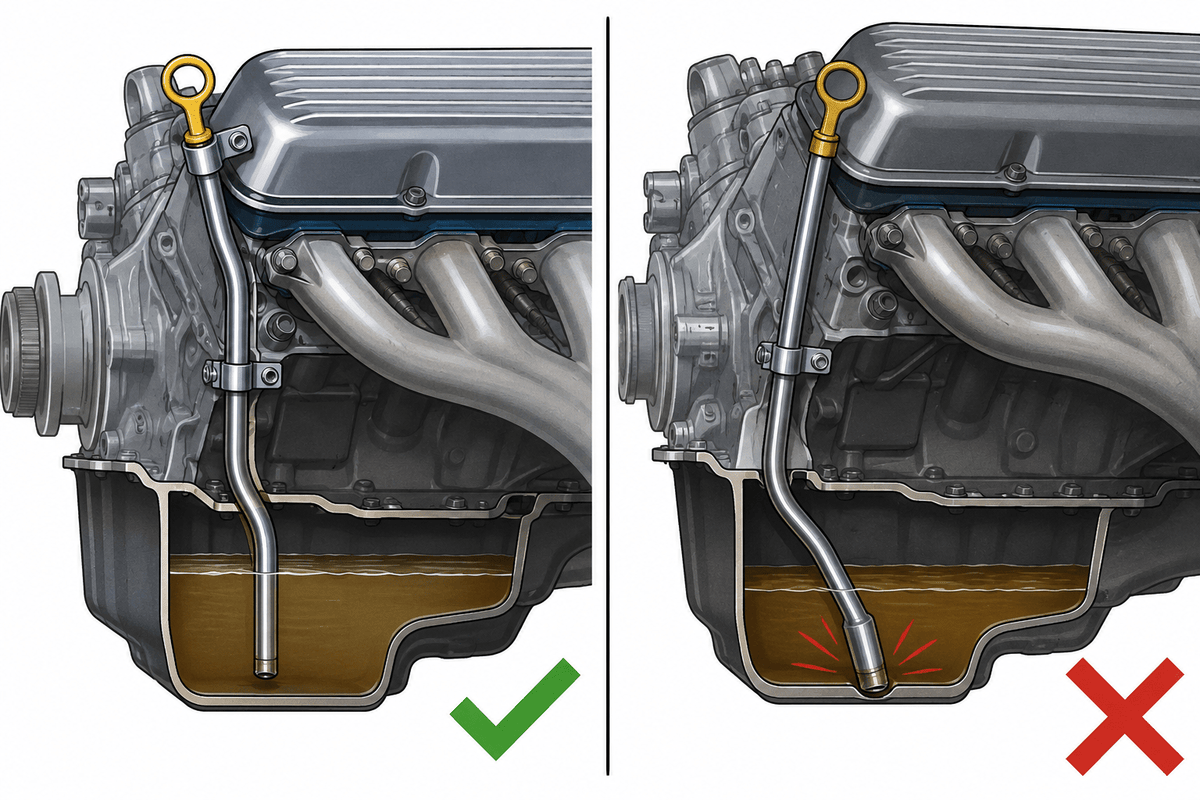

Tube Length Affects Dipstick Position

Dipstick tube length and dipstick length work together.

When the handle seats at the top of the tube, the measuring end needs to reach a specific position inside the engine. Changing the installed tube length changes where the dipstick markings sit relative to the oil.

A tube that holds the dipstick too high can create a false low reading and encourage overfilling. One that positions the dipstick too low can create the opposite error.

The tube and dipstick therefore need to be matched as part of the same measuring arrangement, especially when the history of the existing parts is unknown.

Different Engines Use Different Tube Locations

Depending on the application, the tube may enter through the block, timing cover, or oil pan, and its location can change even within the same engine family.

Small-block Chevy engines are a familiar example. Earlier and later configurations can use different dipstick locations, so the installed engine's actual production configuration determines which arrangement belongs in the build.

Lokar offers engine dipstick assemblies with different lower fittings and mounting arrangements based on engine application and dipstick location.

With an engine swap, select the oil dipstick tube around the installed engine, its oil pan, and intended entry point rather than the vehicle's original specifications.

Some Engines Use a Lower Guide Tube

What you see above the engine is not always the entire tube system.

Certain engines use an additional lower guide to direct the dipstick along its intended path inside the block toward the oil pan. Without that guide, the blade may not be properly directed through the engine.

Lokar specifically notes that 1979 and earlier small-block Chevy engines require the factory GM lower dipstick tube when installing its applicable flexible dipstick assembly. The company warns that operating without it can damage the dipstick or engine.

Before replacing a missing tube, determine whether the application uses upper and lower sections or another guide arrangement. A replacement upper tube cannot replace a required internal guide.

Fit the Tube Around a Modified Engine Bay

The original dipstick tube route was designed around factory hardware. Headers, engine swaps, and accessory changes can make that route difficult or impossible to use.

Headers Can Block the Factory Route

Long-tube and block-hugger headers can occupy the space where the original rigid tube once ran.

This does not necessarily mean the dipstick entry point at the engine needs to change. More often, the challenge is finding a safe route from that point to an accessible location in the engine bay.

Avoid forcing a rigid tube around a header primary. Tight or excessive bends can restrict dipstick travel, weaken the tube, or leave it too close to hot exhaust components.

Flexible dipstick systems can solve some of these packaging problems because their outer housings can follow a less direct route. Lokar specifically describes its flexible assemblies as suitable for tight clearances around headers.

The key is to maintain the correct engine connection while adapting the accessible portion of the system to the available space.

Engine Swaps Change the Starting Point

The installed engine establishes where the tube enters, while the oil pan and surrounding swap hardware influence how it can be routed from that point. Headers may add another clearance restriction.

An aftermarket tube can fit the engine opening while still having the wrong length, fit, or mounting arrangement. Application-specific components reduce that uncertainty.

Performance Online has offered flexible dipstick assemblies for common classic engine combinations, including small-block Chevy, big-block Chevy, and small-block Ford applications.

Treat the swap as a new tube installation rather than trying to preserve a location or component simply because it belonged to the original vehicle.

Accessibility Should Be Planned Before Final Assembly

The tube needs both clearance and practical access to the dipstick handle.

Accessory brackets, wiring, hoses, and other engine-bay components can make a poorly positioned handle difficult to reach. A tube behind a hot header or beneath an accessory may technically work, but it can make routine oil checks unnecessarily difficult.

Flexible assemblies provide more freedom to position the handle, but the housing should be supported rather than left loose. Rigid tubes also need proper mounting where the application calls for it.

Check the handle position with the headers and accessories installed whenever possible, since the available route can change once the engine bay is complete.

Good fitment should make checking the oil straightforward.

Replace and Install the Tube Correctly

Replace the tube when the original is damaged, badly corroded, missing, or no longer compatible with the engine configuration. The replacement must seat correctly without damaging its mounting point or causing a leak.

Know When to Replace a Dipstick Tube

A bent engine dipstick tube can cause the blade to bind or prevent it from seating consistently.

Minor bends aren't automatically a reason to replace the tube if it stays correctly positioned and the dipstick moves freely. Severe kinks, cracks, corrosion, loose mounting, or damaged ends are clearer signs that replacement is warranted.

A loose connection where the tube enters the engine can allow movement each time you remove and reinstall the dipstick. Depending on the design, damage around that connection may also contribute to an oil leak.

Don't replace dipstick tube components just because a newer part looks better. Replace them only when condition or compatibility requires it.

Removal Requires Care Around the Mounting Point

How you replace a dipstick tube depends on how that engine retains it.

Some tubes press into the block or another engine component. Others use threaded fittings, seals, brackets, or oil pan connections.

Decades of heat and corrosion can make a press-fit tube difficult to remove. Excessive pulling or twisting can deform it, while breaking the tube at the engine can turn a small job into a much larger repair.

Before removal, identify the retention method and determine whether the replacement requires a seal, fitting, bracket, or other hardware.

If the tube has broken, verify that no section remains where it could interfere with the replacement or dipstick path. Protect the mounting point so the replacement tube can seat correctly.

Install the Replacement to the Intended Depth

Dipstick tube installation is not complete just because the tube feels tight.

The tube needs to reach its intended installed position. On a press-fit design, that may mean seating against a defined stop or reaching a specified depth. Threaded or sealed designs follow their own installation requirements.

Do not hammer directly on a thin tube without an appropriate installation method. Crushing or distorting the upper end can make the dipstick difficult to insert even if the lower connection remains intact.

Once installed, check that the tube is secure and follows the intended route. Insert the dipstick carefully and confirm that it travels smoothly and reaches its normal seated position.

If it stops unexpectedly, do not force it. Binding can indicate a damaged tube, an incorrect bend, a missing lower guide, or an incompatible dipstick.

Prevent Leaks and Fitment Problems

A properly installed dipstick tube should remain secure, correctly positioned, and sealed according to the engine's design.

Use the Correct Dipstick Tube Seal

Not every dipstick tube uses the same sealing method.

Some applications rely on a press fit between the tube and engine. Others use an O-ring, grommet, threaded fitting, or another sealing arrangement.

Use the sealing method specified for the tube-and-engine combination. Do not use sealant as a substitute for the correct mechanical fit or a missing seal.

If oil appears around the tube, clean the area and confirm the source because nearby leaks can travel. If the tube is responsible, inspect its seal, seating depth, and mounting surface before deciding whether any sealant is appropriate for that application.

Secure the Tube Without Creating Stress

Many tubes use a bracket to stabilize the upper section.

That bracket should support the tube without pulling it away from its natural installed position. If you have to force the tube sideways to align the bracket, the routing or component combination may be wrong.

Flexible housings also need support and should not rest against headers or moving components.

Allow enough clearance for engine movement. The engine shifts slightly on its mounts under acceleration and deceleration, so a tube positioned too close to a fixed chassis or steering component may make contact.

Check clearance around exhaust, belts, steering components, and linkage before considering the job complete.

Verify the Complete Assembly

Reinstall the matching dipstick and confirm that the handle seats consistently while the blade or cable moves smoothly without scraping, catching, or unusual force.

Once it is safe to run the engine, inspect the tube for movement, contact with surrounding parts, and signs of oil leakage around the mounting point.

If you replaced the dipstick and tube as part of a larger engine or oil-pan change, verify the oil-level indication using the correct specifications for that combination.

For the tube itself, the goal is straightforward: correct length, secure installation, proper sealing, clear routing, and smooth dipstick travel.

Get those details right, and the dipstick tube becomes what it should be on a classic build: a simple component that does its job without fighting the headers, leaking oil, or making routine maintenance harder than it needs to be.
