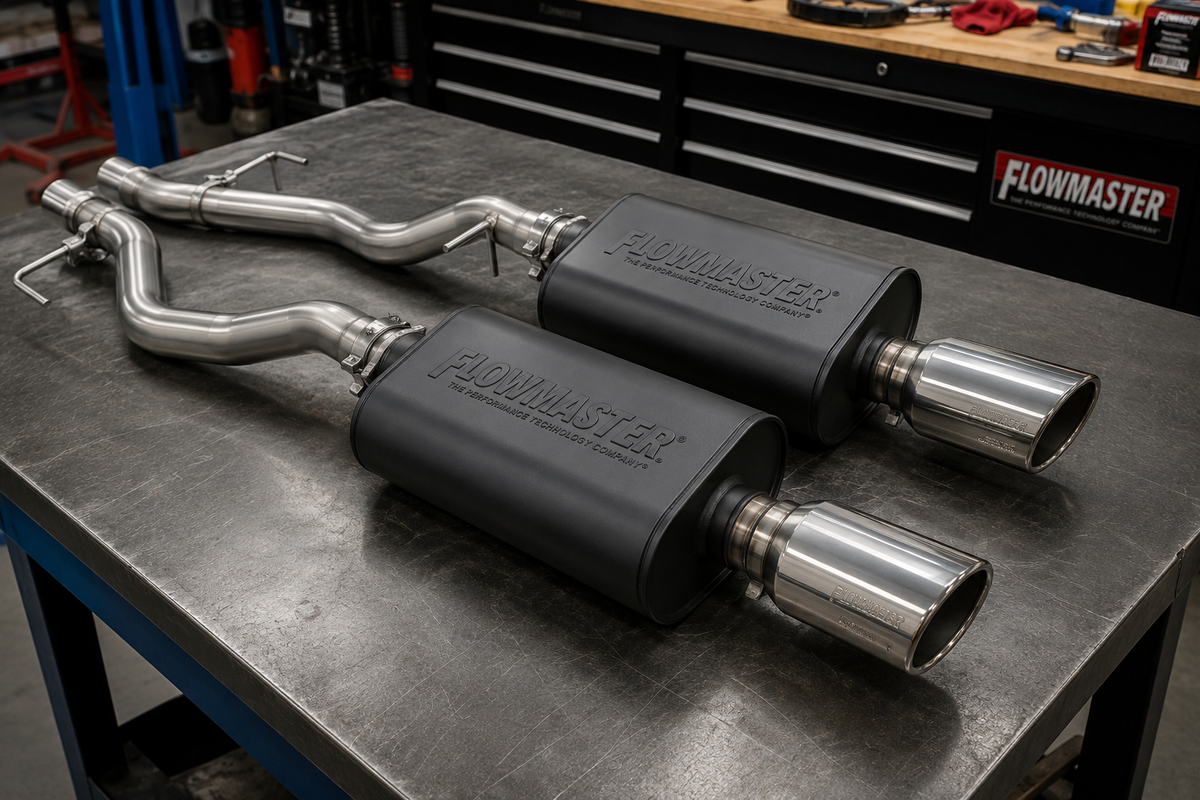

Flowmaster Dual Exhaust for Classic Cars and Trucks
A Flowmaster dual exhaust system can improve exhaust capacity, change sound, and give a classic car or truck a more purposeful layout. But adding a second exhaust path also creates more decisions. Pipe diameter, routing, engine output, chassis clearance, and crossover design all affect how a dual exhaust setup performs and fits.
The right layout depends as much on the vehicle as on the engine. A system that works under a stock-height muscle car may not fit the same way under a lowered truck with a transmission swap and custom rear suspension. Planning those details first helps you build a system that works with the vehicle rather than simply putting two pipes underneath it.
How a Dual Exhaust System Changes the Setup
A single exhaust routes both sides of the engine into one pipe before the gases exit the vehicle. A true Flowmaster dual exhaust keeps the two sides separated through most of the system, usually with one pipe serving each bank of cylinders. That change affects flow capacity, packaging, and sound.
Single and Dual Exhaust Handle Flow Differently
The main reason to consider dual exhaust is capacity. Two properly sized pipes can provide more total cross-sectional area than a single pipe, helping an engine move a larger volume of exhaust gas.
That does not mean every classic needs dual exhaust. A mild engine can work well with a properly sized single system, while a higher-output V8 may benefit from dual pipes. The system should match the airflow the engine actually produces.
Pipe diameter still needs to suit displacement, horsepower, rpm range, and intended use. Oversizing the tubing on a mild street engine does not automatically improve Flowmaster performance.
Dual exhaust also changes packaging. Two pipes need space around the transmission, driveshaft, floor, rear suspension, fuel system, and frame. On many classic cars and trucks, finding room for the second pipe can influence the layout as much as exhaust flow.
H-Pipes and X-Pipes Connect Both Sides
A true dual system can keep both sides completely separate, but many systems use a crossover between the left and right pipes. The two common designs are H-pipes and X-pipes.
An H-pipe uses a connecting tube between the two exhaust pipes. An X-pipe brings both sides together through a merged crossover, then separates them again. Both allow communication between the two sides, but their construction and effect on the system differ.
Crossover placement matters. Exhaust temperature, available chassis space, transmission and driveshaft clearance, and the rest of the pipe routing can affect where the crossover can sit. Plan it as part of the complete system rather than adding it wherever space remains.
The crossover can also influence exhaust sound. H-pipes and X-pipes do not produce identical results, and the engine, mufflers, tubing, and tailpipes continue to shape the final tone. If sound matters to your build, consider crossover design alongside the rest of the exhaust rather than as a separate decision.
Mufflers Still Need to Match the System
A Flowmaster dual exhaust normally uses one muffler on each side, so muffler dimensions and connections become part of the packaging plan. Two mufflers need enough room beneath the vehicle without creating problems with the driveshaft, floor, suspension, or ground clearance.
This is where two decisions need to remain separate. First, determine what the dual exhaust requires in terms of tubing size, routing, and available space. Then choose mufflers that work within those requirements.
Flowmaster offers mufflers with different sound and packaging characteristics. For a dual exhaust, the pair you choose must fit the available space, match the tubing, and deliver the sound you want. A detailed comparison of Flowmaster muffler designs falls under the muffler-selection side of the build.
Match Dual Exhaust to the Vehicle and Engine
The exhaust has to satisfy two different sets of requirements. The engine determines how much exhaust capacity you need, while the chassis determines where that capacity can physically go. A good dual exhaust plan accounts for both before you order parts or cut tubing.
Build Pipe Size Around Engine Requirements
When choosing dual exhaust pipe size, bigger is not automatically better. The correct diameter depends on engine displacement, horsepower, modifications, rpm range, and how the vehicle will be driven.
A mostly stock small-block used for cruising doesn't have the same exhaust demand as a high-output big-block that regularly runs at higher RPM. Cylinder heads, camshaft, induction, and other engine changes can also increase airflow requirements even when displacement stays the same.
Headers and collectors matter too. If the engine already uses performance headers, collector diameter and location influence how the dual system begins. Factory manifolds may create a different starting point and require different connections.
Mandrel-bent tubing helps maintain a more consistent inside diameter through bends, which becomes useful where the system must turn around chassis components. Flowmaster uses mandrel-bent tubing in its vehicle-specific exhaust systems and also offers builder components for fabricated layouts.
Pipe diameter should support the engine's airflow requirements while fitting the rest of the system.
Classic Cars Create Tight Routing Challenges
Classic cars often have limited room for two full exhaust pipes. Transmission tunnels, crossmembers, driveshafts, floor pans, rear suspension, fuel tanks, and low body structure all compete for the same space.
Modifications make that environment less predictable. A transmission swap can change crossmember clearance, while a four-link conversion may occupy space once used by factory tailpipes. Mini-tubs, wider tires, relocated fuel tanks, and lowered suspension can further restrict routing.
Ground clearance becomes critical on a low car. Mufflers and pipes that hang below the frame or other chassis components may become the first parts to contact steep driveways, speed bumps, or uneven pavement.
Rear suspension movement also needs room. Tailpipes routed over or around the axle must clear the suspension throughout its normal travel, not just while the car sits at ride height. Hangers should support the exhaust without holding it so rigidly that normal movement loads the joints or muffler cases.
These constraints make accurate measurement and routing part of the system design, not something to solve after the parts arrive.
Classic Trucks Have Their Own Fitment Concerns
Classic trucks often have more visible frame structure than passenger cars, but that doesn't always make dual exhaust easier. Frame rails, wheelbase, bed length, spare-tire location, fuel tank position, rear suspension, and drivetrain changes all influence the available path.
A lowered C10 with a four-link or air suspension, for example, can have very different exhaust space from a stock-height truck on leaf springs. Pipes need clearance around the rear axle and suspension through their full range of movement.
Tailpipe exits also deserve attention. Rear exits, side exits, turndowns, and dumps each require different routing and place exhaust sound in different locations relative to the cab and bed.
Engine or transmission changes may also alter the front routing. The farther the truck differs from its factory configuration, the more important actual measurements become when planning the system.
Choose Between a Kit and a Custom System
Once you know the engine requirements and available chassis space, you can decide how much of the exhaust can come from a vehicle-specific kit and how much needs to be fabricated.
Direct-Fit Kits Can Simplify Installation
A vehicle-specific dual exhaust kit can save fabrication time when the car or truck remains reasonably close to the configuration the system was designed around. Pre-bent tubing and planned muffler locations remove much of the routing work.
“Direct-fit,” however, should not be interpreted as “fits every modified version of this vehicle.” Engine and transmission swaps, aftermarket crossmembers, suspension changes, replacement fuel tanks, or previous exhaust work can alter the available path.
Check the kit's intended application against the vehicle as it sits today. Confirm header or manifold compatibility, pipe diameter, muffler location, exit style, and any drivetrain or suspension requirements before assuming the system will bolt into place.
Custom Exhaust Works Around Modified Builds
Custom fabrication becomes useful when the factory exhaust path no longer matches the vehicle. A fabricator can route tubing around drivetrain, suspension, chassis, and fuel-system changes instead of forcing a pre-bent system into space that no longer exists.
Custom routing also gives you more control over muffler placement, crossover position, and tailpipe exits. Flowmaster's builder components, including tubing, bends, reducers, couplers, clamps, and turndowns, support this type of installation.
More importantly, a custom system needs enough clearance to move with the drivetrain and chassis without rattling, striking other components, or stressing exhaust joints unnecessarily.
Plan the Complete Dual Exhaust Before Installation
Before cutting or ordering tubing, follow the intended exhaust path from front to rear. Start at the manifolds or header collectors and check the route around the drivetrain, chassis, suspension, fuel system, and rear axle.
Plan crossover and muffler locations within that path. Verify ground clearance and suspension movement before deciding where the tailpipes will travel and exit.
Heat also needs attention. Exhaust tubing and mufflers should have suitable clearance from fuel lines, brake lines, wiring, floor panels, and other heat-sensitive components. Heat shields can help where space is limited, but they do not replace proper routing and clearance.
Finally, consider future service access. An exhaust that blocks transmission removal, suspension hardware, or other regularly serviced components can create unnecessary work later. Clamps and V-band connections can make selected sections easier to remove when the layout requires it.
A well-planned Flowmaster dual exhaust should support the engine, fit the chassis, and work with the way the vehicle is built and driven. Planning those requirements together is what separates a complete dual exhaust system from simply adding another pipe.
