What Is a Brake Booster and How Does It Work?
What is a brake booster, and why does it make such a noticeable difference from the driver's seat? The booster adds force to your pedal input before the master cylinder creates hydraulic pressure, giving you power-assisted braking without changing the brakes' basic job. Understanding that relationship makes it easier to see why booster type, engine vacuum, and pedal geometry matter on a classic car or truck.
What a Brake Booster Does in the Braking System

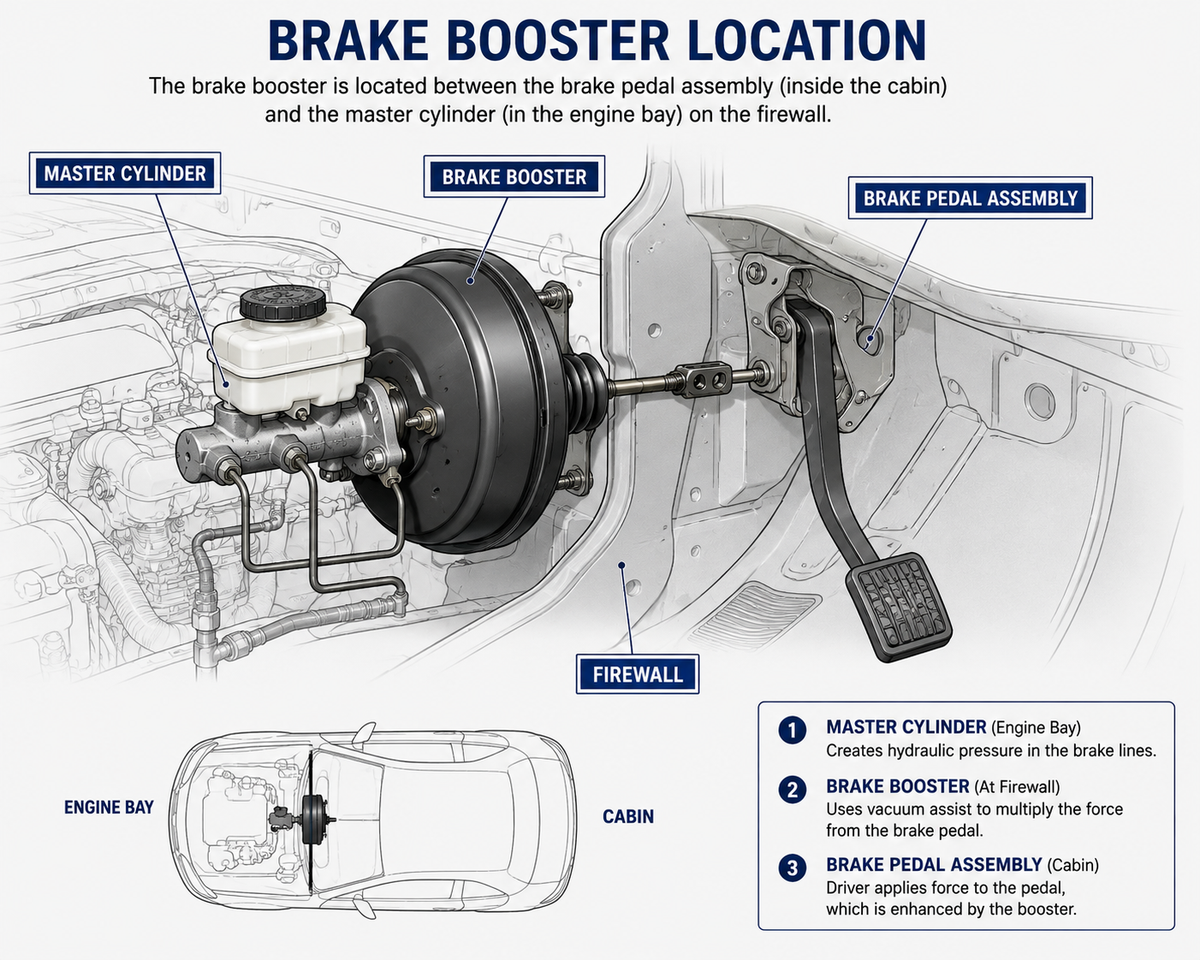

A brake booster sits between the brake pedal and master cylinder and assists the force you apply with your foot. It helps you operate the hydraulic system with less pedal effort but does not create braking at the wheels.
The Booster Adds Force to Your Pedal Input
When you press the brake pedal, mechanical force travels through the pedal linkage toward the booster. The booster uses an outside energy source to assist that input before transferring force to the master cylinder.
Without a booster, the driver's leg and pedal leverage provide the force. Manual brakes can work very well when the system and pedal geometry are designed around manual operation.
A power brake booster adds another source of force, reducing the physical effort needed to create the required master cylinder input.
The booster does not automatically make the brakes themselves more capable. Rotor size, caliper design, tire grip, and brake balance still affect stopping performance.
The Master Cylinder Converts Force Into Pressure
The master cylinder sits on the booster's output side. When its piston moves, it pressurizes brake fluid and sends hydraulic pressure through the brake lines.
That pressure operates the calipers in a disc brake system or wheel cylinders in a drum brake system. The booster provides mechanical input, while the master cylinder converts it into hydraulic action.
Master cylinder bore size influences this relationship. A larger bore moves more fluid for a given amount of piston travel but generally requires more input force. A smaller bore moves less fluid per unit of travel and can reduce the force requirement while increasing pedal travel.
Performance Online's vehicle-specific power brake packages typically include a booster, master cylinder, mounting hardware, and any required proportioning components for the intended brake configuration.
Pedal Geometry Remains Part of the Equation
Adding power brake assist does not remove the mechanical leverage the pedal creates. Pedal ratio still influences how your foot movement and force reach the booster.
Pedal ratio compares the distance from the pedal pivot to the pedal pad with the distance from the pivot to the pushrod connection. Changing the pushrod attachment point changes the leverage available to the driver.
Manual and power brake systems can use different pedal ratios because a manual setup relies more heavily on mechanical leverage. When converting a classic from manual to power brakes, the correct pedal attachment point and linkage arrangement therefore matter.
Pushrod alignment also matters because the rod needs to operate the booster without side loading or awkward movement. A universal booster may physically bolt to the firewall but still require the correct bracket and linkage geometry to work properly.
How a Vacuum Brake Booster Creates Assist
The vacuum brake booster is the design most enthusiasts associate with traditional power brakes. It uses a pressure difference across an internal diaphragm to help move the booster pushrod when you press the pedal. Engine manifold vacuum commonly supplies the low-pressure side of that system.
Vacuum Creates a Pressure Difference
A vacuum booster contains a flexible diaphragm, or diaphragms in a dual-diaphragm design, inside a sealed housing. With the brakes released and vacuum available, the booster maintains low pressure within its chambers.
When you press the pedal, an internal control valve changes the pressure relationship inside the booster. Atmospheric pressure enters one side while vacuum remains on the other.
The pressure difference across the diaphragm creates force that assists the driver's input. The booster transfers the combined force through its output pushrod to the master cylinder.
When you release the pedal, the internal valve returns the booster to its resting position so vacuum can equalize the appropriate chambers again.
This explains an important point about how brake boosters work: vacuum does not pull the master cylinder piston forward on its own. The booster uses the difference between atmospheric pressure and the lower pressure created by vacuum to generate assist.
Engine Vacuum Supplies the Energy Source
Traditional vacuum boosters commonly connect to manifold vacuum through a large hose. A relatively mild gasoline engine can often provide enough brake booster vacuum for normal operation.
Longer camshaft duration and greater valve overlap, common in more aggressive performance cams, can reduce manifold vacuum at idle. That may leave less vacuum available for consistent booster operation.
A one-way check valve helps the booster retain vacuum when manifold conditions temporarily change.
A vacuum reservoir can add storage capacity. An electric vacuum pump is another option when the engine cannot provide a dependable source on its own.
Before changing components, measure what the engine actually produces. A rough idle and aggressive cam do not automatically prove that a conventional vacuum system cannot work.
Diaphragm Area Influences Available Assist
The amount of usable diaphragm area affects how much assisting force a vacuum booster can generate for a given pressure difference. That is one reason booster diameter matters.
A larger single diaphragm provides more area, but classic engine bays often limit how large the housing can be. Valve covers, steering components, and engine placement can compete for the same space.
Dual-diaphragm boosters address this packaging problem by using two diaphragms. This increases effective diaphragm area without requiring the larger outside diameter of a comparable single-diaphragm design.
More assist is not automatically better. The goal is controlled, predictable braking with appropriate pedal effort.
How Hydraulic Power Brake Assist Works
Vacuum is not the only way to reduce brake pedal effort. A hydraulic brake booster uses pressurized fluid from the power steering system as its energy source.
Hydraulic Pressure Replaces Engine Vacuum
A hydraulic brake booster mounts between the pedal linkage and master cylinder like a vacuum unit, but it uses a different assist source.
Instead of using atmospheric pressure against vacuum, the booster receives pressurized power steering fluid. When you press the brake pedal, internal valving directs hydraulic pressure to assist the pushrod acting on the master cylinder. The power steering pump therefore supplies energy for both steering and brake assist.
Because the hydraulic brake booster does not depend on manifold vacuum, an aggressive camshaft does not reduce assist the way it can in a vacuum-operated system.
Compact Packaging Can Help Modified Classics
A large round vacuum booster can compete for firewall space with tall valve covers, larger engines, or relocated components.
Hydraulic boosters use a different housing shape and can provide additional clearance in some applications.
That does not mean hydraulic assist solves every packaging problem. Pressure and return hoses need routes between the pump, steering gear or rack, booster, and reservoir. Fittings must clear surrounding components, and the system needs to be properly plumbed.
A hydraulic booster also depends on a suitable power steering pump and a correctly functioning hydraulic circuit.
Hydraulic assist replaces vacuum requirements with hydraulic plumbing requirements.
Both Designs Serve the Same Basic Purpose
A vacuum system creates force through a pressure difference acting across a diaphragm. A hydraulic system uses pressurized fluid acting through its internal mechanism. Both add force to the driver's input before it reaches the master cylinder.
Neither changes the basic hydraulic principles operating the wheel brakes. Once the master cylinder generates pressure, the downstream brake system still has to distribute and use that pressure correctly.
What Power Assist Changes From the Driver's Seat
Technical explanations matter, but you experience the brake booster through the pedal.
Power Brakes Reduce Effort Without Replacing Feedback
A well-matched power brake system should reduce pedal effort without making it feel disconnected from what the brakes are doing.
Too little assist can leave you pushing harder than expected. Excessive assist can make the pedal feel overly sensitive, especially if the master cylinder and pedal geometry are not well matched.
A heavy classic truck may benefit from a different combination than a lightweight street car.
You should not judge brake booster function by pedal lightness alone. You should still have enough pedal travel and feedback to modulate the brakes smoothly.
Booster Type Does Not Determine Brake Configuration
Power assist can work with drum brakes, disc/drum combinations, or four-wheel discs when the rest of the system is designed correctly.
The booster does not determine front-to-rear hydraulic balance, which still depends on the master cylinder, proportioning, and brake configuration.
Installing front discs does not mean you can ignore the master cylinder or hydraulic controls because a power booster is present. Likewise, converting from manual to power assist does not automatically require changing every component at the wheels.
Understanding the System Makes Problems Easier to Trace
A hard pedal may indicate missing power assist, but that does not automatically mean the booster itself has failed. A vacuum-operated system also depends on its hose, check valve, and vacuum source.
Hydraulic assist introduces its own supporting components, including the power steering pump, hoses, and hydraulic connections.
Other brake problems can produce symptoms that feel similar from behind the wheel. Master cylinder condition, pedal geometry, seized components, and hydraulic faults all deserve consideration before blaming the booster.
Understanding what a brake booster does helps you separate the assist system from the hydraulic braking system and recognize where one ends and the other begins.
Once the booster, master cylinder, pedal geometry, and brake hardware work together correctly, power assist becomes part of a balanced braking system rather than a substitute for one.
