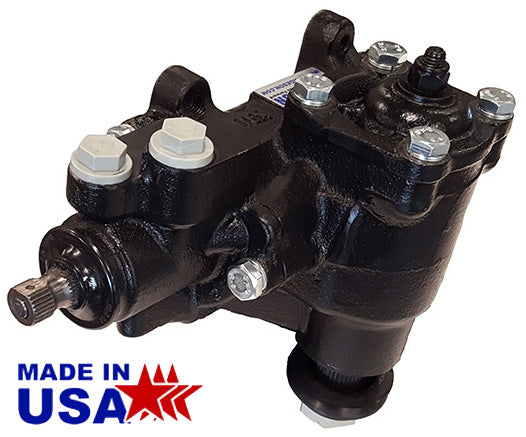

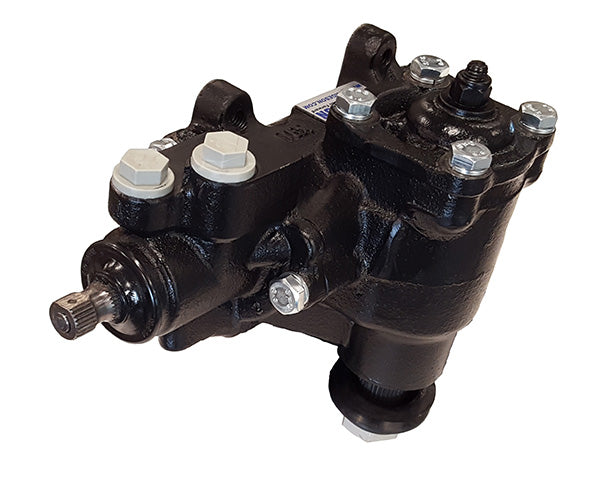

1965-77 GM High Performance Power Steering Gear Box

This quick ratio power steering gear box is a great upgrade to replace the Saginaw/Delphi 800 series found in most 1965 and up GM muscle cars. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. Bolts directly to the stock location and works with the factory power steering pitman arm. When using in a power steering conversion, a new power steering pitman arm will be required.

Quick 12.7:1 ratio (new not rebuilt)
Requires power steering pitman arm

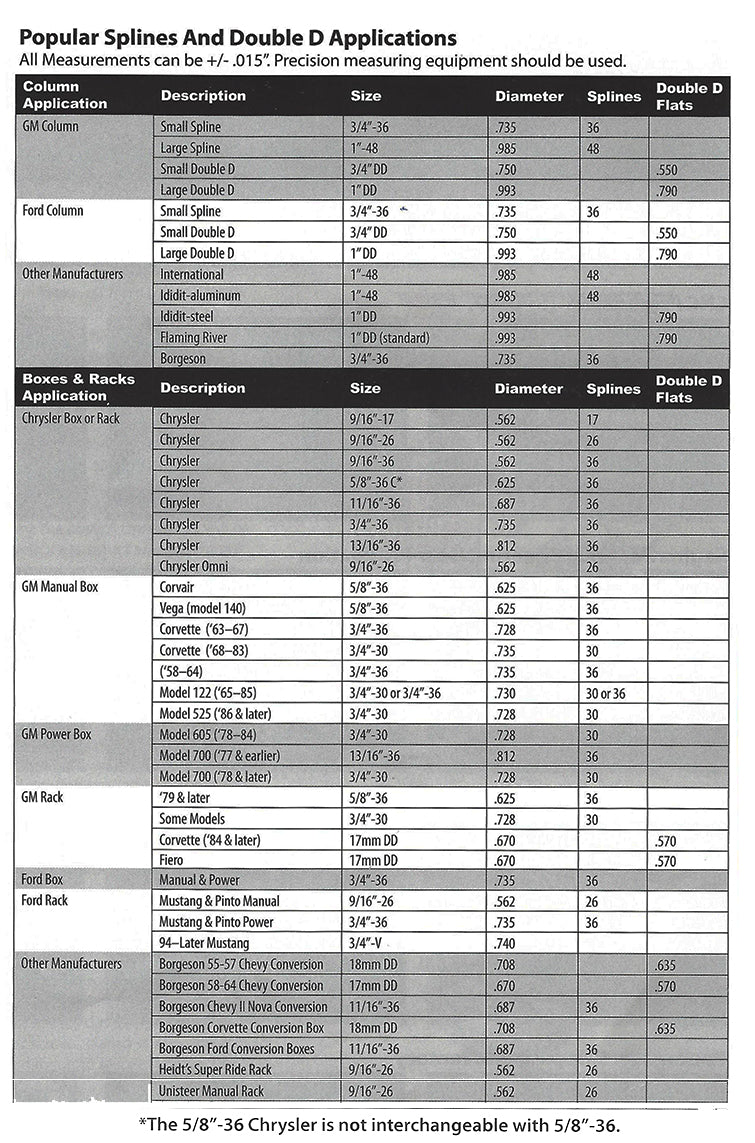

Input shaft is 3/4"-30 Spline
High Pressure port on gear box is 11/16"-18
Low Pressure port on gear box is 5/8"-18
1965-1977 Chevy Impala, Chevelle, Camaro, Nova, Pontiac GTO, Firebird, Buick Skylark, Oldsmobile Cutlass, GM A F X body
