Details

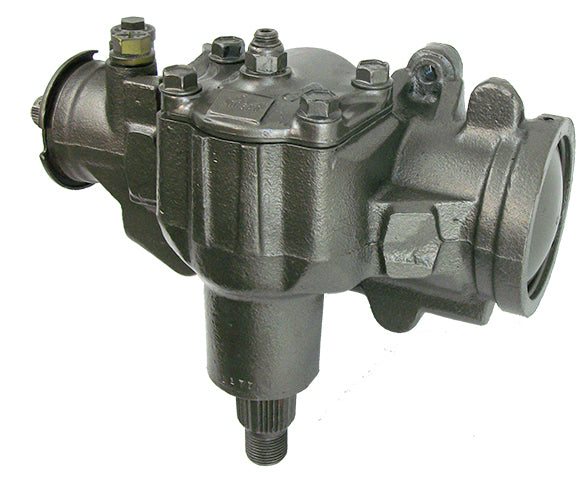

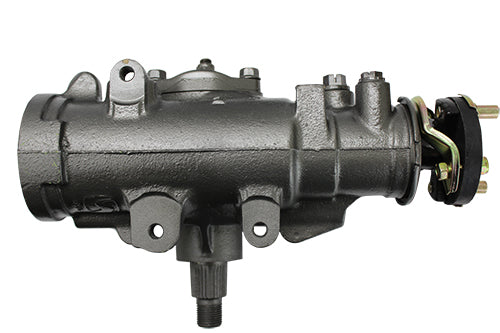

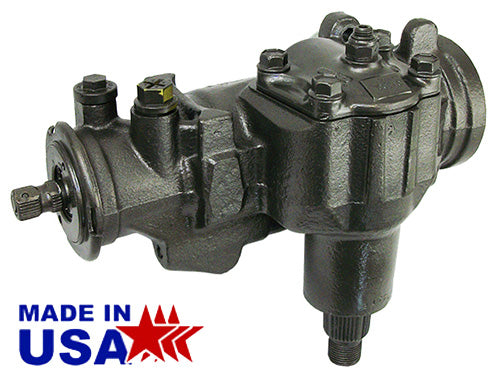

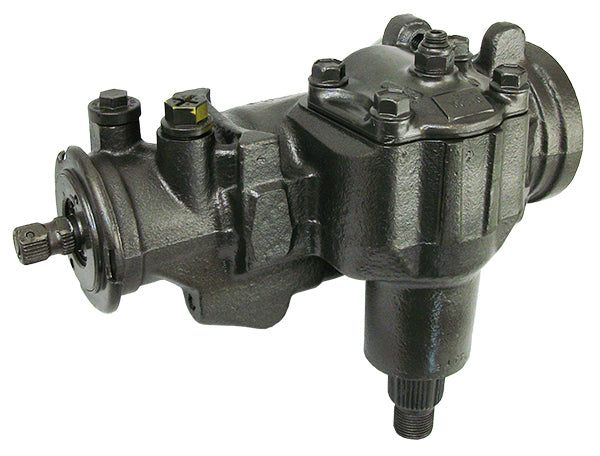

This 1968-79 Chevy Nova Model 700 series power steering gear box is quality manufactured. Our power steering gear boxes are built to precise specifications and tolerances. This Performance Gear Box is available in a standard or quick ratio. This produces excellent road feel and driver feedback
1964-77 Saginaw 800 Power Steering Gear Box for GM Classic A Body Cars
Standard ratio 16:1 box, 4 - 4.25 turns/ Quick ratio 14:1 box, 3 - 3.5 turns
Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines

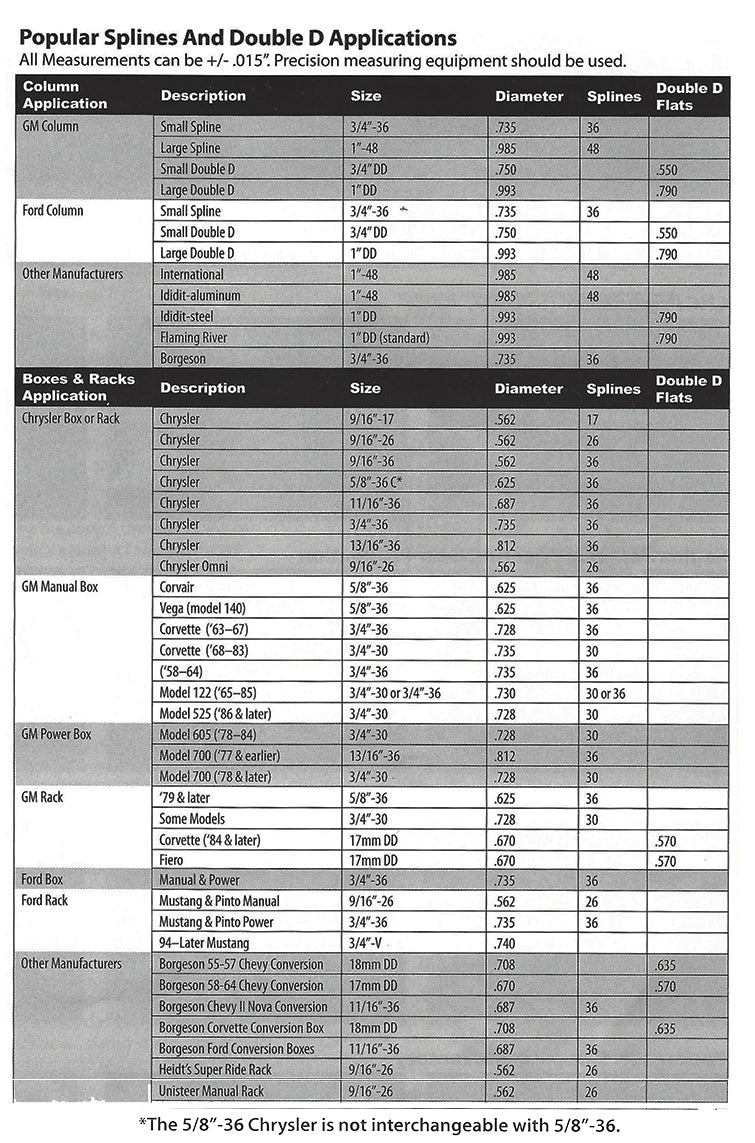

Input shaft 3/4"-30 spline OR 13/16-36 depending on core variations
Pressure port on gear box is 11/16"-18 flare
Return Port on gear box is 5/8"-18 flare
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
1964 -1977 GM A-Body Chevy Chevelle, El Camino, Pontiac GTO, Buick Skylark and Oldsmobile Cutlass, 442
