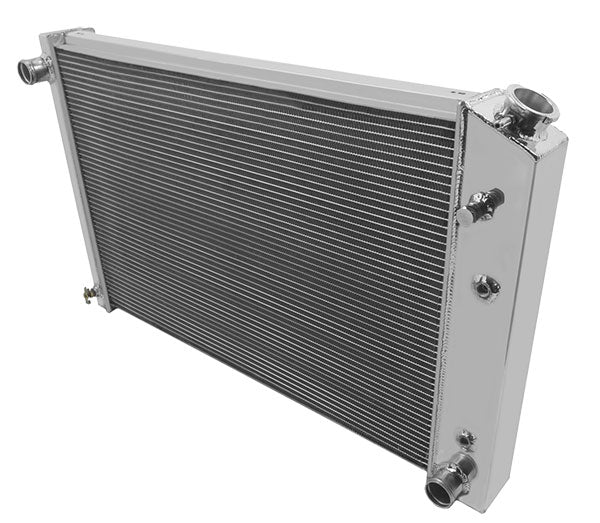

1973-87 Chevy, GMC C10 Truck Aluminum Radiator
Performance Online · SKU: EC7387

1973-87 Chevy, GMC C10 Truck Aluminum Radiator

Be the first to review
Share:
$274.19
1

Performance Online's all new Aluminum radiators are constructed of aircraft grade aluminum. Each radiator is 100% tig welded aluminum with 14-16 cooling fins per inch to allow even distribution of cooling. They feature 2mm thick tanks and fittings with cooling for the baddest engines out there. Available in 2 row and 3 row cores.

  • 2 row radiators have a core thickness of 1.75" with 3/4" cooling tubes
  • 3 row radiators have a core thickness of 2.25" with 5/8" cooling tubes

Core Dim (H x W):  19" x 28-1/4"

Overall (H x W):   21-1/8" x 33-1/4"

Hose Connections:  In-Drivers, Out- Passenger

Hose Fittings: In- 1-1/2", Out 1-1/2"

Trans Cooler: 1/2-20 Straight Thread, Inverted Flare

Mounting Type: Saddle
