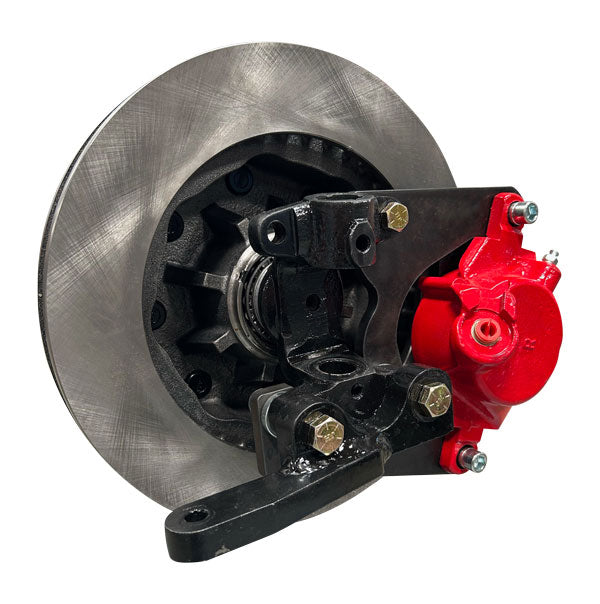

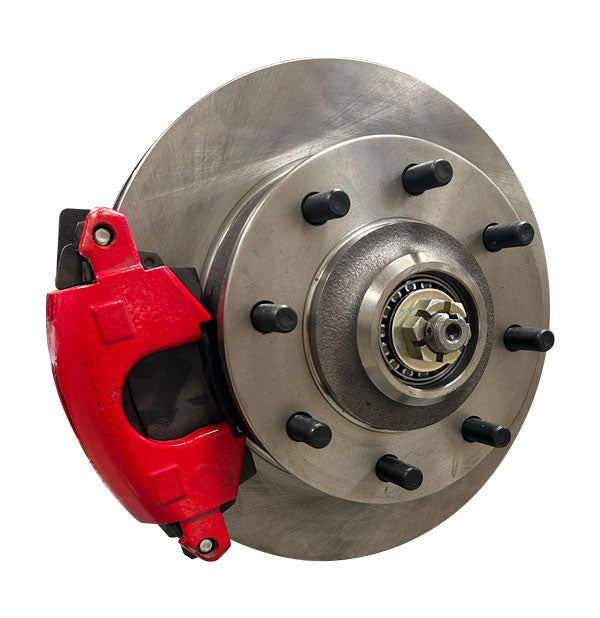

1947-1959 Chevy GMC 3600/3800 Truck Disc Brake Conversion 8 Lug
Disc Brake Conversion for Chevy GMC 3600/3800 3/4-1 Ton Trucks
Tapered roller bearing conversion 12" rotor Note: Kit moves WMS out approximately 1" per side. Factory 15" 8 lug rims do fit but modification may be necessary due to manufacturing tolerances. Both Spindle variant bearing adapters included in kit.
V1 DBK84759 Bearing adapters Assumed to be 47-52 Spindles 2 inner bearing adapter 1.4" Size 2 outer bearing adapters .841" size.
V2 DBK84759 Bearing adapters Assumed to be 53-59 Spindles 2 inner bearing adapter 1.5" size 2 outer bearing adapters .905" size

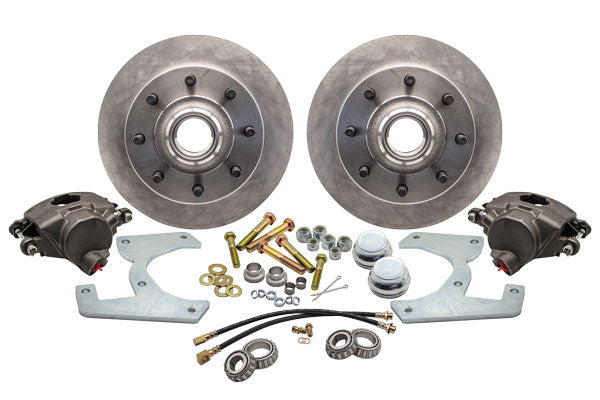

Includes:
2 8 lug rotor/hub assemblies
2 brake calipers
2 brake hoses
4 bearing adapters
4 tapered roller bearings
2 grease seals
2 spindle nut and washer assemblies
2 dust caps
2 brake caliper mounts
3 1/4" spacers and needed hardware.
